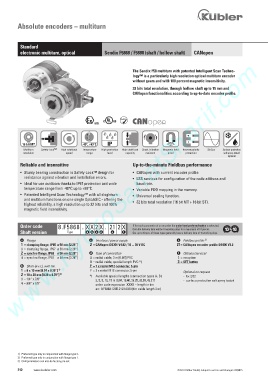

Page 314 - Keubler Motion Sensors

Absolute encoders – multiturn

Standard
electronic multiturn, optical Sendix F5868 / F5888 (shaft / hollow shaft) CANopen
www.HydroSanatSharif.com

The Sendix F58 multiturn with patented Intelligent Scan Techno-
logy™ is a particularly high resolution optical multiturn encoder
without gears and with 100 percent magnetic insensitivity.
32 bits total resolution, through hollow shaft up to 15 mm and
CANopen functionalities according to up-to-date encoder profile.

RoHS
2/22

16 bit MT -40°... +80°C IP
Multiturn Safety-Lock TM High rotational Temperature High protection High shaft load Shock / vibration Magnetic field Reverse polarity SinCos Surface protection
resolution speed range level capacity resistant proof protection salt spray-tested
optional
Reliable and insensitive Up-to-the-minute Fieldbus performance
• Sturdy bearing construction in Safety-Lock™ design for • CANopen with current encoder profile.
resistance against vibration and installation errors. • LSS services for configuration of the node address and
• Ideal for use outdoors thanks to IP67 protection and wide baud rate.
temperature range from -40°C up to +80°C. • Variable PDO mapping in the memory.
• Patented Intelligent Scan Technology™ with all singleturn • Universal scaling function.
and multiturn functions on one single OptoASIC - offering the • 32 bits total resolution (16 bit MT + 16 bit ST).
highest reliability, a high resolution up to 32 bits and 100%
magnetic field insensitivity.

Order code 8.F5868 . X X 2 X . 21 2 X If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Shaft version Type a b c d e f Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange c Interface / power supply e Fieldbus profile 3)
1 = clamping flange, IP65 ø 58 mm [2.28“] 2 = CANopen DS301 V4.02 / 10 ... 30 V DC 21 = CANopen encoder profile DS406 V3.2
3 = clamping flange, IP67 ø 58 mm [2.28“]
2 = synchro flange, IP65 ø 58 mm [2.28“] d Type of connection f Options (service)
4 = synchro flange, IP67 ø 58 mm [2.28“] A = radial cable, 2 m [6.56‘] PVC 2 = no option
B = radial cable, special length PVC *) 3 = SET button
b Shaft (ø x L), with flat E = 1 x radial M12 connector, 5-pin
1 = 6 x 10 mm [0.24 x 0.39“] 1) F = 2 x radial M12 connector, 5-pin Optional on request
2 = 10 x 20 mm [0.39 x 0.79“] 2) *) Available special lengths (connection types A, B): - Ex 2/22
3 = 1/4“ x 7/8“ 3, 5, 8, 10, 15 m [9.84, 16.40, 26.25, 32.80, 49.21‘] - surface protection salt spray tested
4 = 3/8“ x 7/8“ order code expansion .XXXX = length in dm
ex.: 8.F5868.122B.2123.0030 (for cable length 3 m)

1) Preferred type only in conjunction with flange type 2.
2) Preferred type only in conjunction with flange type 1.
3) CAN parameters can also be factory pre-set.
