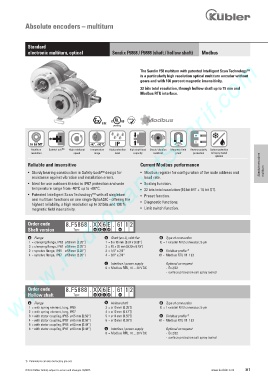

Page 319 - Keubler Motion Sensors

Absolute encoders – multiturn

Standard
electronic multiturn, optical Sendix F5868 / F5888 (shaft / hollow shaft) Modbus
www.HydroSanatSharif.com

The Sendix F58 multiturn with patented Intelligent Scan Technology™
is a particularly high resolution optical multiturn encoder without
gears and with 100 percent magnetic insensitivity.
32 bits total resolution, through hollow shaft up to 15 mm and
Modbus RTU interface.

RoHS
2/22
pending

16 bit MT -40°... +80°C IP
Multiturn Safety-Lock TM High rotational Temperature High protection High shaft load Shock / vibration Magnetic field Reverse polarity Surface protection
resolution speed range level capacity resistant proof protection salt spray tested
optional
Reliable and insensitive Current Modbus performance Absolute encoders
• Sturdy bearing construction in Safety-Lock™ design for • Modbus register for configuration of the node address and multiturn
resistance against vibration and installation errors. baud rate.
• Ideal for use outdoors thanks to IP67 protection and wide • Scaling function.
temperature range from -40°C up to +80°C. • 32 bits total resolution (16 bit MT + 16 bit ST).
• Patented Intelligent Scan Technology™ with all singleturn • Preset function.
and multiturn functions on one single OptoASIC - offering the • Diagnostic functions.
highest reliability, a high resolution up to 32 bits and 100 %
magnetic field insensitivity. • Limit switch function.

Order code 8.F5868 . X X 6 E . 61 1 2
Shaft version Type a b c d e

a Flange b Shaft (ø x L), with flat d Type of connection
1 = clamping flange, IP65 ø 58 mm [2.28“] 1 = 6 x 10 mm [0.24 x 0.39“] E = 1 x radial M12 connector, 5-pin
3 = clamping flange, IP67 ø 58 mm [2.28“] 2 = 10 x 20 mm [0.39 x 0.79“]
2 = synchro flange, IP65 ø 58 mm [2.28“] 3 = 1/4“ x 7/8“ e Fieldbus profile 1)
4 = synchro flange, IP67 ø 58 mm [2.28“] 4 = 3/8“ x 7/8“ 61 = Modbus RTU V1_1b3

c Interface / power supply Optional on request
6 = Modbus RTU, 10 ... 30 V DC - Ex 2/22
- surface protection salt spray tested

Order code 8.F5888 . X X 6 E . 61 1 2
Hollow shaft Type a b c d e

a Flange b Hollow shaft d Type of connection
1 = with spring element, long, IP65 3 = ø 10 mm [0.39“] E = 1 x radial M12 connector, 5-pin
2 = with spring element, long, IP67 4 = ø 12 mm [0.47“]
3 = with stator coupling, IP65 ø 65 mm [2.56“] 5 = ø 14 mm [0.55“] e Fieldbus profile 1)
4 = with stator coupling, IP67 ø 65 mm [2.56“] 6 = ø 15 mm [0.59“] 61 = Modbus RTU V1_1b3
5 = with stator coupling, IP65 ø 63 mm [2.48“]
6 = with stator coupling, IP67 ø 63 mm [2.48“] c Interface / power supply Optional on request
6 = Modbus RTU, 10 ... 30 V DC - Ex 2/22
- surface protection salt spray tested

1) Parameters can also be factory pre-set.
© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 317
