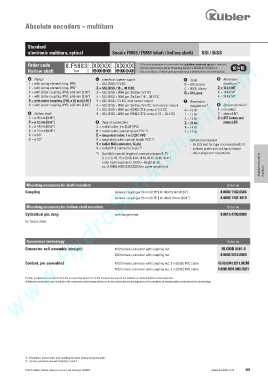

Absolute encoders – multiturn

Standard
electronic multiturn, optical Sendix F5863 / F5883 (shaft / hollow shaft) SSI / BiSS
www.HydroSanatSharif.com
Order code 8.F5883 . X X X X . X X X X If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Hollow shaft Type a b c d e f g h Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange c Interface / power supply e Code g Resolution

1 = with spring element, long, IP65 1 = SSI, BiSS / 5 V DC B = SSI, binary (multiturn) 1)
2 = with spring element, long, IP67 2 = SSI, BiSS / 10 ... 30 V DC C = BiSS, binary 2 = 12 bit MT
3 = with stator coupling, IP65, ø 65 mm [2.56“] 3 = SSI, BiSS + 2048 ppr. SinCos / 5 V DC G = SSI, gray 6 = 16 bit MT
4 = with stator coupling, IP67, ø 65 mm [2.56“] 4 = SSI, BiSS + 2048 ppr. SinCos / 10 ... 30 V DC 4 = 24 bit MT
5 = with stator coupling, IP65, ø 63 mm [2.48“] 5 = SSI, BiSS / 5 V DC, with sensor output f Resolution
6 = with stator coupling, IP67, ø 63 mm [2.48“] 6 = SSI, BiSS + 2048 ppr. SinCos / 5 V DC, with sensor output (singleturn) 1) h Options (service)
7 = SSI, BiSS + 2048 ppr. RS422 (TTL-comp.) / 5 V DC A = 10 bit 1 = no option
b Hollow shaft 8 = SSI, BiSS + 2048 ppr. RS422 (TTL-comp.) / 10 ... 30 V DC 1 = 11 bit 2 = status LED
3 = ø 10 mm [0.39“] 2 = 12 bit 3 = SET button and
4 = ø 12 mm [0.47“] d Type of connection 3 = 13 bit status LED
5 = ø 14 mm [0.55“] 2 = radial cable, 1 m [3.28‘] PVC 4 = 14 bit
6 = ø 15 mm [0.59“] B = radial cable, special length PVC *) 7 = 17 bit
8 = ø 3/8“ E = tangential cable, 1 m [3.28‘] PVC
9 = ø 1/2“ F = tangential cable, special length PVC *) Optional on request
4 = radial M23 connector, 12-pin - Ex 2/22 (not for type of connection E, F)
6 = radial M12 connector, 8-pin 2) - surface protection salt spray tested
*) Available special lengths (connection types B, F): - other singleturn resolutions
2, 3, 5, 8, 10, 15 m [5.56, 9.84, 16.40, 26.25, 32.80, 49.21‘]
order code expansion .XXXX = length in dm
ex.: 8.F5883.542B.G323.0030 (for cable length 3 m) Absolute encoders multiturn

Mounting accessory for shaft encoders Order no.
Coupling bellows coupling ø 19 mm [0.75“] for shaft 6 mm [0.24“] 8.0000.1102.0606
bellows coupling ø 19 mm [0.75“] for shaft 10 mm [0.39“] 8.0000.1102.1010

Mounting accessory for hollow shaft encoders Order no.
Cylindrical pin, long with fixing thread 8.0010.4700.0000
for torque stops

Connection technology Order no.
Connector, self-assembly (straight) M12 female connector with coupling nut 05.CMB 8181-0
M23 female connector with coupling nut 8.0000.5012.0000
Cordset, pre-assembled M12 female connector with coupling nut, 2 m [6.56‘] PVC cable 05.00.6041.8211.002M
M23 female connector with coupling nut, 2 m [6.56‘] PVC cable 8.0000.6901.0002.0031
Further accessories can be found in the accessories section or in the accessories area of our website at: www.kuebler.com/accessories.
Additional connectors can be found in the connection technology section or in the connection technology area of our website at: www.kuebler.com/connection_technology.

1) Resolution, preset value and counting direction factory-programmable.
2) Can be combined only with Interface 1 and 2.
© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 307
