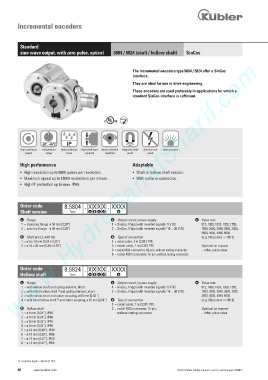

Incremental encoders

Standard
sine wave output, with zero pulse, optical 5804 / 5824 (shaft / hollow shaft) SinCos
www.HydroSanatSharif.com

The incremental encoders type 5804 / 5824 offer a SinCos
interface.

They are ideal for use in drive engineering.
These encoders are used preferably in applications for which a
standard SinCos interface is sufficient.

RoHS

-20°... +85°C IP
High rotational Temperature High protection High shaft load Shock / vibration Magnetic field Short-circuit Optical sensor
speed range level capacity resistant proof proof

High performance Adaptable
• High resolution up to 5000 pulses per revolution. • Shaft or hollow shaft version.
• Maximum speed up to 12000 revolutions per minute. • With cable or connector.
• High IP protection up to max. IP66.

Order code 8.5804 . X X X X . XXXX
Shaft version Type a b c d e
a Flange c Output circuit / power supply e Pulse rate
1 = clamping flange ø 58 mm [2.28“] 1 = SinCos, 1 Vpp (with inverted signal) / 5 V DC 512, 1000, 1024, 1200, 1250,
2 = synchro flange ø 58 mm [2.28“] 2 = SinCos, 1 Vpp (with inverted signal) / 10 ... 30 V DC 1500, 2000, 2048, 2500, 3000,
3600, 4000, 4096, 5000
b Shaft (ø x L), with flat d Type of connection (e.g. 512 pulses => 0512)
1 = ø 6 x 10 mm [0.24 x 0.39“] 1 = axial cable, 1 m [3.28‘] TPE
2 = ø 10 x 20 mm [0.39 x 0.79“] 2 = radial cable, 1 m [3.28‘] TPE Optional on request
3 = axial M23 connector, 12-pin, without mating connector - other pulse rates
5 = radial M23 connector, 12-pin, without mating connector

Order code 8.5824 . X X X X . XXXX
Hollow shaft Type a b c d e
a Flange c Output circuit / power supply e Pulse rate
1 = with hollow shaft and spring element, short 1 = SinCos, 1 Vpp (with inverted signal) / 5 V DC 512, 1000, 1024, 1200, 1250,
1)
2 = with blind hollow shaft and spring element, short 2 = SinCos, 1 Vpp (with inverted signal) / 10 ... 30 V DC 1500, 2000, 2048, 2500, 3000,
3 = with hollow shaft and stator coupling, ø 65 mm [2.56“] 3600, 4000, 4096, 5000
1)
4 = with blind hollow shaft and stator coupling, ø 65 mm [2.56“] d Type of connection (e.g. 512 pulses => 0512)
1 = radial cable, 1 m [3.28‘] TPE
b Hollow shaft 2 = radial M23 connector, 12-pin, Optional on request
1 = ø 6 mm [0.24“], IP40 without mating connector - other pulse rates
2 = ø 6 mm [0.24“], IP66
3 = ø 8 mm [0.32“], IP40
4 = ø 8 mm [0.32“], IP66
5 = ø 10 mm [0.39“], IP40
6 = ø 10 mm [0.39“], IP66
7 = ø 12 mm [0.47“], IP40
8 = ø 12 mm [0.47“], IP66

1) Insertion depth ) 30 mm [1.18“].
