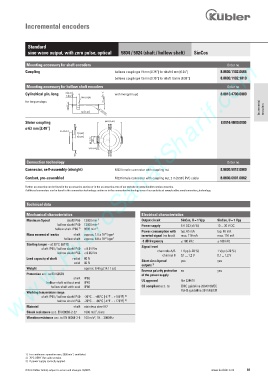

Incremental encoders

Standard
sine wave output, with zero pulse, optical 5804 / 5824 (shaft / hollow shaft) SinCos
www.HydroSanatSharif.com
Mounting accessory for shaft encoders Order no.
Coupling bellows coupling ø 19 mm [0.75“] for shaft 6 mm [0.24“] 8.0000.1102.0606
bellows coupling ø 19 mm [0.75“] for shaft 10 mm [0.39“] 8.0000.1102.1010

Mounting accessory for hollow shaft encoders Order no.
Cylindrical pin, long with fixing thread 8.0010.4700.0000

6: > @
P
for torque stops

0 5 Incremental encoders

Stator coupling 8.0010.4D00.0000
ø 63 mm [2.48“]

ƒ
0

Connection technology Order no.
Connector, self-assembly (straight) M23 female connector with coupling nut 8.0000.5012.0000

Cordset, pre-assembled M23 female connector with coupling nut, 2 m [6.56‘] PVC cable 8.0000.6901.0002
Further accessories can be found in the accessories section or in the accessories area of our website at: www.kuebler.com/accessories.
Additional connectors can be found in the connection technology section or in the connection technology area of our website at: www.kuebler.com/connection_technology.

Technical data

Mechanical characteristics Electrical characteristics
Maximum Speed shaft IP65 12000 min -1 Output circuit SinCos, U = 1 Vpp SinCos, U = 1 Vpp
hollow shaft IP40 12000 min -1 Power supply 5 V DC (±5 %) 10 ... 30 V DC
1)
hollow shaft IP66 6000 min -1
Power consumption with typ. 65 mA typ. 65 mA
Mass moment of inertia shaft approx. 1.8 x 10 kgm 2 inverted signal (no load) max. 110 mA max. 110 mA
-6
-6
hollow shaft approx. 6.0 x 10 kgm 2
-3 dB frequency ) 180 kHz ) 180 kHz
Starting torque – at 20°C [68°F]
shaft IP65 / hollow shaft IP40 < 0.01 Nm Signal level
hollow shaft IP66 < 0.05 Nm channels A/B 1 Vpp (±20 %) 1 Vpp (±20 %)
channel 0 0.1 ... 1.2 V 0.1 ... 1.2 V
Load capacity of shaft radial 80 N Short circuit proof yes yes
axial 40 N
outputs 3)
Weight approx. 0.4 kg [14.11 oz]
Reverse polarity protection no yes
Protection acc. to EN 60529 of the power supply
shaft IP65
hollow shaft without seal IP40 UL approval file 224618
hollow shaft with seal IP66 CE compliant acc. to EMC guideline 2004/108/EC
RoHS guideline 2011/65/EU
Working temperature range
2)
shaft IP65 / hollow shaft IP40 -20°C ... +85°C [-4°F ... +185°F]
hollow shaft IP66 -20°C ... +80°C [-4°F ... +176°F] 2)
Material shaft stainless steel H7
Shock resistance acc. EN 60068-2-27 1000 m/s , 6 ms
2
2
Vibration resistance acc. to EN 60068-2-6 100 m/s , 10 ... 2000 Hz

1) For continuous operation max. 3000 min -1 , ventilated.
2) 70°C [158°F] for cable version.
3) If power supply correctly applied.
© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 81
