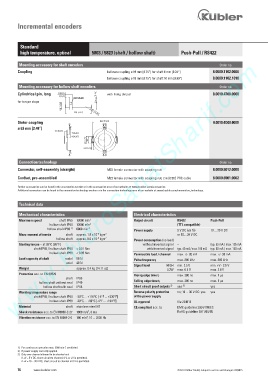

Incremental encoders

Standard
high temperature, optical 5803 / 5823 (shaft / hollow shaft) Push-Pull / RS422
www.HydroSanatSharif.com
Mounting accessory for shaft encoders Order no.
Coupling bellows coupling ø 19 mm [0.75“] for shaft 6 mm [0.24“] 8.0000.1102.0606
bellows coupling ø 19 mm [0.75“] for shaft 10 mm [0.39“] 8.0000.1102.1010

Mounting accessory for hollow shaft encoders Order no.
Cylindrical pin, long with fixing thread 8.0010.4700.0000

6: > @ P
for torque stops

0 5

Stator coupling 8.0010.4D00.0000
ø 63 mm [2.48“]

ƒ
0

Connection technology Order no.
Connector, self-assembly (straight) M23 female connector with coupling nut 8.0000.5012.0000

Cordset, pre-assembled M23 female connector with coupling nut, 2 m [6.56‘] PVC cable 8.0000.6901.0002
Further accessories can be found in the accessories section or in the accessories area of our website at: www.kuebler.com/accessories.
Additional connectors can be found in the connection technology section or in the connection technology area of our website at: www.kuebler.com/connection_technology.

Technical data

Mechanical characteristics Electrical characteristics
Maximum speed shaft IP65 12000 min -1 Output circuit RS422 Push-Pull
hollow shaft IP40 12000 min -1 (TTL compatible)
1)
hollow shaft IP66 6000 min -1 Power supply 5 V DC (±5 %) 10 ... 30 V DC
-6
Mass moment of inertia shaft approx. 1.8 x 10 kgm 2 or 10 ... 30 V DC
hollow shaft approx. 6.0 x 10 kgm 2 Power consumption (no load)
-6
Starting torque – at 20°C [68°F] without inverted signal – typ. 55 mA / max. 125 mA
shaft IP65 / hollow shaft IP40 < 0.01 Nm with inverted signal typ. 40 mA / max. 100 mA typ. 80 mA / max. 150 mA
hollow shaft IP66 < 0.05 Nm Permissible load / channel max. +/- 20 mA max. +/- 30 mA
Load capacity of shaft radial 80 N Pulse frequency max. 300 kHz max. 300 kHz
axial 40 N
Signal level HIGH min. 2.5 V min. +V - 2.5 V
Weight approx. 0.4 kg [14.11 oz] LOW max. 0.5 V max. 2.0 V
Protection acc. to EN 60529 Rising edge time t r max. 200 ns max. 1 µs
shaft IP65
hollow shaft without seal IP40 Falling edge time t f max. 200 ns max. 1 µs
3)
hollow shaft with seal IP66 Short circuit proof outputs 2) yes yes
Working temperature range Reverse polarity protection no; 10 ... 30 V DC: yes yes
shaft IP65 / hollow shaft IP40 -20°C ... +110°C [-4°F ... +230°F] of the power supply
hollow shaft IP66 -20°C ... +90°C [-4°F ... +194°F] UL approval file 224618
Material shaft stainless steel H7 CE compliant acc. to EMC guideline 2004/108/EC
2
Shock resistance acc. to EN 60068-2-27 1000 m/s , 6 ms RoHS guideline 2011/65/EU
2
Vibration resistance acc. to EN 60068-2-6 100 m/s , 10 ... 2000 Hz

1) For continuous operation max. 3000 min -1 , ventilated.
2) If power supply correctly applied.
3) Only one channel allowed to be shorted-out:
if +V = 5 V DC, short-circuit to channel, 0 V, or +V is permitted.
if +V = 10 ... 30 V DC, short-circuit to channel or 0 V is permitted.
