Connection technology

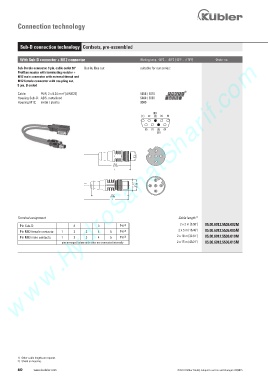

Sub-D connection technology Cordsets, pre-assembled

www.HydroSanatSharif.com
With Sub-D connector + M12 connectorWith Sub-D connector + M12 connector W Order no.
Working temp. -30°C ... +80°C [-22°F ... +176°F]orking temp. -30°C ... +80°C [-22°F ... +176°F]
Order no.
Sub-D male connector, 9 pin, cable outlet 90° Bus in, Bus out suitable for our series:
Profibus master with terminating resistor +
M12 male connector with external thread and
M12 female connector with coupling nut,
5 pin, B coded
Cable: PUR, 2 x 0.34 mm [AWG22] 5858 / 5878
2
Housing Sub-D: ABS, metallised 5868 / 5888
Housing M12: metal / plastic 9080
RD
(1) (2) (3) (4) (5)

(6) (7) (8) (9)
GN

2
1 5 3
4

2
3 5 1
4

Terminal assignment Cable length 1)
2 x 2 m [6.56‘] 05.00.6012.5536.002M
Pin Sub-D: 8 3 PH 2)
Pin M12 female contacts: 1 2 3 4 5 PH 2) 2 x 5 m [16.40‘] 05.00.6012.5536.005M
Pin M12 male contacts: 1 2 3 4 5 PH 2) 2 x 10 m [32.81‘] 05.00.6012.5536.010M
pins arranged below each other are connected internally 2 x 15 m [49.21‘] 05.00.6012.5536.015M

1) Other cable lengths on request.
2) Shield on housing.
482 www.kuebler.com © Fritz Kübler GmbH, subject to errors and changes. 02/2015
