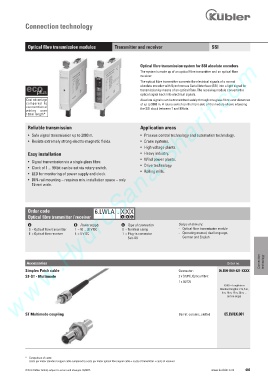

Connection technology

Optical fibre transmission modules Transmitter and receiver SSI

www.HydroSanatSharif.com
Optical fibre transmission system for SSI absolute encoders
The system is made up of an optical fibre transmitter and an optical fibre
receiver.
The optical fibre transmitter converts the electrical signals of a normal
absolute encoder with Synchronous Serial Interface (SSI) into a light signal for
plus transmission by means of an optical fibre. The receiving module converts the
optical signal back into electrical signals.
Cost advantage Absolute signals can be transmitted safely through one glass fibre over distances
Kostenvorteil
g e g e n ü b e r to
compared of up to 2000 m. A rotary switch on the front side of the module allows adjusting
herkömmlicher
conventional the SSI clock between 1 and 99 bits.
Verkabelung ab
wiring over
150 m length*
150 m Länge *
Reliable transmission Application areas
• Safe signal transmission up to 2000 m. • Process control technology and automation technology.
• Resists extremely strong electro-magnetic fields. • Crane systems.
• High voltage plants.
Easy installation • Heavy industry.
• Wind power plants.
• Signal transmission via a single glass fibre.
• Drive technology.
• Clock of 1 ... 99 bit can be set via rotary switch.
• Rolling mills.
• LED for monitoring of power supply and clock.
• DIN-rail mounting – requires min. installation space – only
19 mm wide.

Order code 6.LWLA . X XX
Optical fibre transmitter / receiver a b C
a b Power supply c Type of connection Scope of delivery:
S = Optical fibre transmitter 1 = 10 ... 30 V DC 0 = Terminal clamp - Optical fibre transmission module
E = Optical fibre receiver 4 = 5 V DC 1 = Plug-in connector - Operating manual, dual language,
Sub-D9 German and English

Connection technology
Accessories Order no.
Simplex Patch cable Connector: 05.B09-B09-821-XXXX
ST-ST - Multimode 2 x ST/PC, Optical fibre:
1 x 50/125
XXXX = Length in m
Standard lengths: 2 m, 5 m,
8 m, 10 m, 15 m, 20 m, ...
(in 5 m steps)

ST Multimode coupling Barrel: ceramic, slotted 05.LWLK.001

* Comparison of costs:
Costs per meter standard copper cable compared to costs per meter optical fibre signal cable + costs of transmitter + costs of receiver
