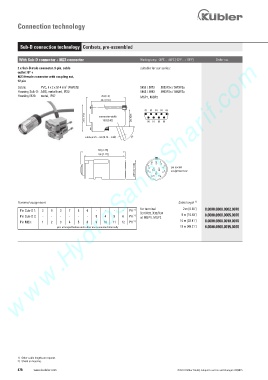

Connection technology
Sub-D connection technology Cordsets, pre-assembled
www.HydroSanatSharif.com
With Sub-D connector + M23 connector Working temp. -30°C ... +80°C [-22°F ... +176°F] Order no.
2 x Sub-D male connector, 9-pin, cable suitable for our series:
outlet 70° +
M23 female connector with coupling nut,
12 pin
2
Cable: PVC, 6 x 2 x 0.14 mm [AWG25] 5853 / 5873 5853FSx / 5873FSx
Housing Sub-D: ABS, metallised, IP20 5863 / 5883 5863FSx / 5883FSx
Housing M23: metal, IP67 MSP1, MSP2
(1) (2) (3) (4) (5)
connector width
15.8 [0.62]
(6) (7) (8) (9)
cable ø 3.5 ... 8.6 [0.14 ... 0.34] >.DEHO .DEHO
@
60 [2.36]
56 [2.20]
8 9 1 2
ø26,5 [1.04] 6 7 5 12 11 10 4 3 pin socket
assignment cw
Terminal assignment Cable length 1)
for terminal 2 m [6.56‘] 8.0000.6900.0002.0070
Pin Sub-D 1: 2 9 3 7 5 6 - - - - PH 2)
X31/X33, X32/X34 5 m [16.40‘]
Pin Sub-D 2: - - - - - - 8 4 5 6 PH 2) at MSP1, MSP2 8.0000.6900.0005.0070
Pin M23: 1 2 3 4 5 6 9 10 11 12 PH 2) 10 m [32.81‘] 8.0000.6900.0010.0070
pins arranged below each other are connected internally 15 m [49.21‘] 8.0000.6900.0015.0070
1) Other cable lengths on request.
2) Shield on housing.
478 www.kuebler.com © Fritz Kübler GmbH, subject to errors and changes. 02/2015
