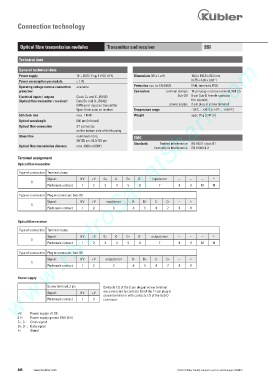

Connection technology




          Optical fibre transmission modules      Transmitter and receiver                   SSI


        www.HydroSanatSharif.com
         Technical data
         General technical data
         Power supply              10 ... 30 DC V eg. 5 V DC ±5 %  Dimensions (W x L x H)     19.0 x 110.8 x 92.3 mm
         Power consumption per module     < 1 W                                       [0.75 x 4.36 x 3.63“]
         Operating voltage reverse connection    available         Protection acc. to EN 60529     IP40, terminals IP20
         protection                                          Connection      terminal clamps  11-pin plug-in screw terminal, RM 3.5
         Electrical inputs / outputs      Clock C+ and C-, RS422                Sub-D9  9-pin Sub-D female contacts
         (Optical fibre transmitter / receiver)     Data D+ and D-, RS422                 (for signals)
                                   NPN error input on transmitter            power supply  2-pin plug-in screw terminal
                                   Open-Drain outut on receiver  Temperature range     -10°C ... +70°C [+14°F ... +158°F]
         SSI clock rate            max. 1 MHz                Weight                   appr. 70 g [2.47 oz]
         Optical wavelength        820 nm (infrared)
         Optical fibre connection     ST connector,
                                   on the bottom side of the housing
         Glass fibre                multimode fibre,           EMC
                                   50/125 µm, 62.5/125 µm
                                                             Standards   Emitted interference  EN 55011 class B1
         Optical fibre transmission distance     max. 2000 m [6561‘]
                                                                      Immunity to interference  EN 61000-6-2
         Terminal assignment
         Optical fibre transmitter
          Type of connection Terminal clamp
                      Signal:        0 V  +V   C+   C-   D+   D-     input/error  –  –     –    )
               0
                      Pin female contact:  1  2  3   4    5    6        7       8    9    10   11

          Type of connection Plug-in connector, Sub-D9
                      Signal:        0 V  +V    input/error  D-  D+   C-   C+   –    )
               1
                      Pin female contact:  1  2    3        4    5    6    7    8    9


         Optical fibre receiver
          Type of connection Terminal clamp
                      Signal:        0 V  +V   C+   C-   D+   D-    output/error  –  –     –    )
               0
                      Pin female contact:  1  2  3   4    5    6        7       8    9    10   11

          Type of connection Plug-in connector, Sub-D9
                      Signal:        0 V  +V    output/error  D-  D+  C-   C+   –    )
               1
                      Pin female contact:  1  2    3        4    5    6    7    8    9


         Power supply
                      Screw terminal, 2 pin    Contacts 1/2 of the 2-pin plug-in screw terminal
                      Signal:        0 V  +V   are connected to contacts 1/2 of the 11-pin plug-in
                                               screw terminal or with contacts 1/2 of the Sub-D
                      Pin female contact:  1  2  connector.

         +V:    Power supply +V DC
         0 V:    Power supply ground GND (0 V)
         C+, C- :   Clock signal
         D+, D- :   Data signal
         ):    Shield
