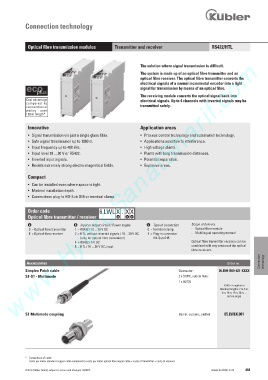

Optical fibre transmission modules Transmitter and receiver RS422/HTL

www.HydroSanatSharif.com
The solution where signal transmission is difficult.
The system is made up of an optical fibre transmitter and an
optical fibre receiver. The optical fibre transmitter converts the
electrical signals of a normal incremental encoder into a light
signal for transmission by means of an optical fibre.
plus
The receiving module converts the optical signal back into
Cost advantage electrical signals. Up to 4 channels with inverted signals may be
Kostenvorteil
g e g e n ü b e r to
compared
conventional transmitted safely.
herkömmlicher
wiring over
Verkabelung ab
150 m length*
150 m Länge *
Innovative Application areas
• Signal transmission via just a single glass fibre. • Process control technology and automation technology.
• Safe signal transmission up to 1000 m. • Applications sensitive to interference.
• Input frequency up to 400 kHz. • High voltage plants.
• Input level 10 ... 30 V or RS422. • Plants with long transmission distances.
• Inverted input signals. • Potential separation.
• Resists extremely strong electro-magnetical fields. • Explosive areas.

Compact

• Can be installed even where space is tight.
• Minimal installation depth.
• Connections plug-in HD-Sub D15 or terminal clamp.

Order code 6.LWL X . X X
Optical fibre transmitter / receiver a b c
a b Input or output circuit / Power supply c Type of connection Scope of delivery:
S = Optical fibre transmitter 1 = RS422 / 10 ... 30 V DC 0 = Terminal clamp - Optical fibre module
E = Optical fibre receiver 2 = HTL, without inverted signals / 10 ... 30 V DC 1 = Plug-in connector - Multilingual operating manual
(only for optical fibre transmitter) HD-Sub D15
4 = RS422 / 5 V DC Optical fibre transmitter versions can be
5 = HTL / 10 ... 30 V DC, input combined with any version of the optical
fibre receivers.
Connection technology
Accessories Order no.
Simplex Patch cable Connector: 05.B09-B09-821-XXXX
ST-ST - Multimode 2 x ST/PC, optical fibre:
1 x 50/125
XXXX = Length in m
Standard lengths: 2 m, 5 m,
8 m, 10 m, 15 m, 20 m, ...
(in 5 m steps)

ST Multimode coupling Barrel: ceramic, slotted 05.LWLK.001

* Comparison of costs:
Costs per meter standard copper cable compared to costs per meter optical fibre signal cable + costs of transmitter + costs of receiver.
© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 483
