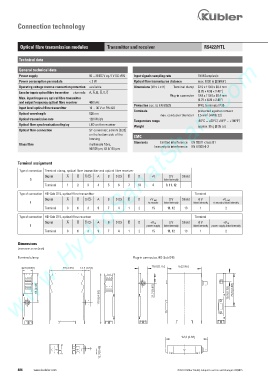

Page 486 - Keubler Motion Sensors

Connection technology

Optical fibre transmission modules Transmitter and receiver RS422/HTL

www.HydroSanatSharif.com
Technical data
General technical data
Power supply 10 ... 30 DC V eg. 5 V DC ±5% Input signals sampling rate 10 MSamples/s
Power consumption per module < 2 W Optical fibre transmission distance max. 1000 m [3280.8‘]
Operating voltage reverse connection protection available Dimensions (W x L x H) Terminal clamp 22.5 x 110.8 x 88.4 mm
Encoder inputs optical fibre transmitter channels A, , B, , 0, [0.89 x 4.36 x 3.48“]
Plug-in connector 19.0 x 110.8 x 88.4 mm
Max. input frequency optical fibre transmitter [0.75 x 4.36 x 3.48“]
and output frequency optical fibre receiver 400 kHz
Protection acc. to EN 60529 IP40, terminals IP20
Input level optical fibre transmitter 10 ... 30 V or RS 422
Terminals protected against contact
Optical wavelength 820 nm 2
max. conductor diameter 2.5 mm [AWG 23]
Optical transmission rate 120 Mbit/s
Temperature range -10°C ... +60°C [+14°F ... +140°F]
Optical fibre synchronisation display LED on the receiver
Weight approx. 95 g [3.35 oz]
Optical fibre connection ST connector, ø 9 mm [0.35]
on the bottom side of the
housing EMC
Emitted interference EN 55011 class B1
Glass fibre multimode fibre, Standards Immunity to interference EN 61000-6-2

50/125 µm, 62.5/125 µm
Terminal assignment
Type of connection Terminal clamp, optical fibre transmitter and optical fibre receiver
Signal ( ) A B 0 (C) D +V 0 V Shield
0 linked internally
Terminal 1 2 3 4 5 6 7 10 8 9, 11, 12 –
Type of connection HD-Sub D15, optical fibre transmitter Terminal
Signal ( ) A B 0 (C) D +V out 0 V Shield 0 V +V out
1 to encoder linked internally linked internally to encoder, linked internally
Terminal 8 6 3 9 7 4 1 2 15 11, 12 13 1 2

Type of connection HD-Sub D15, optical fibre receiver Terminal
Signal ( ) A B 0 (C) D +V in 0 V Shield 0 V +V in
1 power supply linked internally linked internally power supply, linked internally
Terminal 8 6 3 9 7 4 1 2 15 11, 12 13 1 2

Dimensions
Dimensions in mm [inch]

Terminal clamp Plug-in connector, HD-Sub D15

19,0 [0.75] 75 [2.95]
22.5 [0.89] 75 [2.95] 13.4 [0.53]
7 8 9 6 5 4
63 [2.48] 21,7 [0.85] 19,0 [0.75] 73,5 [2.89]
10 11 12 3 2 1
110.8 [4.36]

92,3 [3.63]

12.3 [0.48]

484 www.kuebler.com © Fritz Kübler GmbH, subject to errors and changes. 02/2015
