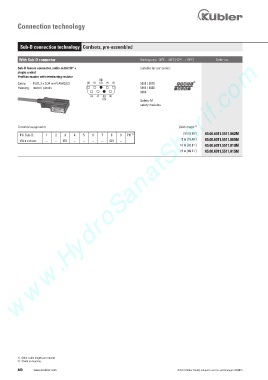

Page 482 - Keubler Motion Sensors

Connection technology

Sub-D connection technology Cordsets, pre-assembled

www.HydroSanatSharif.com
With Sub-D connector Working temp. -30°C ... +80°C [-22°F ... +176°F] Order no.
Sub-D female connector, cable outlet 90° + suitable for our series:
single-ended
Profibus master with terminating resistor
RD
2
Cable: PUR, 2 x 0.34 mm [AWG22] (1) (2) (3) (4) (5) 5858 / 5878
Housing: metal / plastic 5868 / 5888
9080
(6) (7) (8) (9)
GN
Safety-M
safety modules

Terminal assignment Cable length 1)
Pin Sub-D: 1 2 3 4 5 6 7 8 9 PH 2) 2 m [6.56‘] 05.00.6011.5511.002M
5 m [16.40‘] 05.00.6011.5511.005M
Wire colour: – – RD – – – – GN –
10 m [32.81‘] 05.00.6011.5511.010M
15 m [49.21‘] 05.00.6011.5511.015M

1) Other cable lengths on request.
2) Shield on housing.
