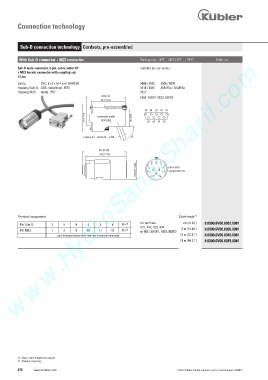

Connection technology

Sub-D connection technology Cordsets, pre-assembled

www.HydroSanatSharif.com
With Sub-D connector + M23 connector Working temp. -30°C ... +80°C [-22°F ... +176°F] Order no.
Sub-D male connector, 9-pin, cable outlet 70° suitable for our series:
+ M23 female connector with coupling nut,
12 pin
2
Cable: PVC, 6 x 2 x 0.14 mm [AWG25] 5000 / 5020 5006 / 5026
Housing Sub-D: ABS, metallised, IP20 5814 / 5834 5814FSx / 5834FSx
Housing M23: metal, IP67 5821

MS1, MSP1, MS2, MSP2

(5) (4) (3) (2) (1)
connector width

15.8 [0.62]
(9) (8) (7) (6)

cable ø 3.5 ... 8.6 [0.14 ... 0.34] >.DEHO .DEHO ƒ
@

60 [2.36]
56 [2.20]
8 9 1 2
ø26,5 [1.04] 6 7 5 12 11 10 4 3 pin socket
assignment cw

Terminal assignment Cable length 1)
for terminal 2 m [6.56‘]
Pin Sub-D: 2 9 8 4 5 6 PH 2) 8.0000.6V00.0002.0081
X31, X32, X33, X34 5 m [16.40‘]
Pin M23: 1 2 9 10 11 12 PH 2) at MS1, MSP1, MS2, MSP2 8.0000.6V00.0005.0081
pins arranged below each other are connected internally 10 m [32.81‘] 8.0000.6V00.0010.0081
15 m [49.21‘] 8.0000.6V00.0015.0081

1) Other cable lengths on request.
2) Shield on housing.
476 www.kuebler.com © Fritz Kübler GmbH, subject to errors and changes. 02/2015
