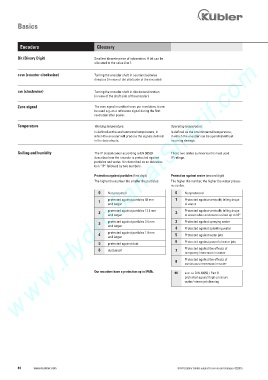

Page 46 - Keubler Motion Sensors

Basics

Encoders Glossary

Bit (Binary Digit) Smallest discrete piece of information. A bit can be
www.HydroSanatSharif.com
allocated to the value 0 or 1.
ccw (counter clockwise) Turning the encoder shaft in counterclockwise
direction (in view of the shaft side of the encoder).

cw (clockwise) Turning the encoder shaft in clockwise direction
(in view of the shaft side of the encoder).

Zero signal The zero signal is emitted once per revolution, it can
be used e.g. as a reference signal during the first
revolution after power.
Temperature Working temperature: Operating temperature:
Is defined as the environmental temperature, in Is defined as the environmental temperature,
which the encoder will produce the signals defined in which the encoder can be operated without
in the data sheets. incurring damage.

Soiling and humidity The IP classification according to EN 60529 These two tables summarise the most used
describes how the encoder is protected against IP ratings.
particles and water. It is described as an abbrevia-
tion ”IP” followed by two numbers.
Protection against particles (first digit) Protection against water (second digit)
The higher the number the smaller the particles. The higher the number, the higher the water pressu-
re can be.
0 Not protected 0 Not protected
protected against particles 50 mm 1 Protected against vertically falling drops
1 and larger of water
2 protected against particles 12.5 mm 2 Protected against vertically falling drops
and larger of water when enclosure is tilted up to 15°
protected against particles 2.5 mm 3 Protected against spraying water
3 and larger
4 Protected against splashing water
protected against particles 1.0 mm
4 and larger 5 Protected against water jets
6 Protected against powerful water jets
5 protected against dust
Protected against the effects of
6 dust proof 7
temporary immersion in water
8 Protected against the effects of
continuous immersion in water
Our encoders have a protection up to IP69k.
9K acc. to DIN 40050 / Part 9:
protected against high-pressure
water/ steam jet cleaning
