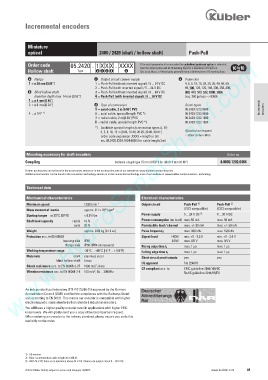

Incremental encoders

Miniature
optical 2400 / 2420 (shaft / hollow shaft) Push-Pull
www.HydroSanatSharif.com
Order code 05.2420 . 1 X X X . XXXX If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Hollow shaft Type a b c d e Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange c Output circuit / power supply e Pulse rate
1 = ø 24 mm [0.94“] 1 = Push-Pull (without inverted signal) / 5 ... 24 V DC 4, 6, 8, 10, 16, 20, 25, 36, 40, 50, 60,
2 = Push-Pull (with inverted signal) / 5 ... 24 V DC 80, 100, 120, 125, 180, 200, 250, 300,
b Blind hollow shaft 3 = Push-Pull (without inverted signal) / 8 ... 30 V DC 360, 400, 500, 512, 1000, 1024
insertion depth max. 14 mm [0.55“] 4 = Push-Pull (with inverted signal) / 8 ... 30 V DC (e.g. 360 pulses => 0360)
1 = ø 4 mm [0.16“]
2 = ø 6 mm [0.24“] d Type of connection Stock types
1 = axial cable, 2 m [6.56‘] PVC 05.2420.1212.0500 Incremental encoders
4 = ø 1/4“ 1) A = axial cable, special length PVC *) 05.2420.1222.0500
2 = radial cable, 2 m [6.56‘] PVC 05.2420.1222.1000
B = radial cable, special length PVC *) 05.2420.1222.1024
*) Available special lengths (connection types A, B):
3, 5, 8, 10, 15 m [9.84, 16.40, 26.25, 32.80, 49.21‘] Optional on request
order code expansion .XXXX = length in dm - other pulse rates
ex.: 05.2420.122A.1024.0030 (for cable length 3 m)

Mounting accessory for shaft encoders Order no.
Coupling bellows coupling ø 15 mm [0.59“] for shaft 4 mm [0.16“] 8.0000.1202.0404

Further accessories can be found in the accessories section or in the accessories area of our website at: www.kuebler.com/accessories.
Additional connectors can be found in the connection technology section or in the connection technology area of our website at: www.kuebler.com/connection_technology.

Technical data
Mechanical characteristics Electrical characteristics
Maximum speed 12000 min -1 Output circuit Push-Pull 2) Push-Pull 2)
-6
Mass moment of inertia approx. 0.1 x 10 kgm 2 (7272 compatible) (7272 compatible)
3)
Starting torque – at 20°C [68°F] < 0.01 Nm Power supply 5 ... 24 V DC 8 ... 30 V DC
Shaft load capacity radial 10 N Power consumption (no load) max. 50 mA max. 50 mA
axial 20 N Permissible load / channel max. +/- 50 mA max. +/- 50 mA
Weight approx. 0.06 kg [2.12 oz] Pulse frequency max. 160 kHz max. 160 kHz
Protection acc. to EN 60529 Signal level HIGH min. +V - 2.5 V min. +V - 3.0 V
housing side IP65 LOW max. 0.5 V max. 0.5 V
flange side IP50 (IP64 on request) Rising edge time t r max. 1 µs max. 1 µs
Working temperature range -20°C ... +85°C [-4°F ... +185°F] Falling edge time t f max. 1 µs max. 1 µs
Materials shaft stainless steel Short circuit proof outputs yes yes
blind hollow shaft brass
UL approval file 224618
2
Shock resistance acc. to EN 60068-2-27 1000 m/s , 6 ms
CE compliant acc. to EMC guideline 2004/108/EC
2
Vibration resistance acc. to EN 60068-2-6 100 m/s , 55 ... 2000 Hz RoHS guideline 2011/65/EU
An independent test laboratory (TTI-PG115/96-01) approved by the German
Accreditation Council (DAR) certified the compliance with the Railways Stand-
ard, according to EN 50121. This means our encoder is compatible with higher
electromagnetic noise standards than standard industrial encoders.
You will have a higher quality encoder even in applications with higher EMC
noise levels. We will gladly send you a copy of the test report on request.
When ordering an encoder to the railway standard, please ensure you state this
explicitly on the order.

1) US version.
2) Max. recommended cable length 30 m [98.4‘].
3) With 24 V DC there is no tolerance above 24 V DC. Please use output circuit 8 ... 30 V DC.
© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 49
