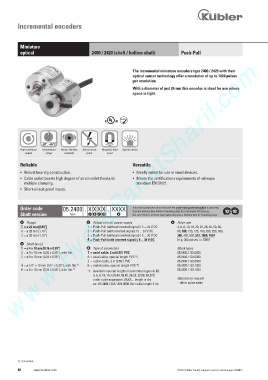

Incremental encoders




          Miniature
          optical                         2400 / 2420 (shaft / hollow shaft)     Push-Pull
        www.HydroSanatSharif.com

                                                            The incremental miniature encoders type 2400 / 2420 with their
                                                            optical sensor technology offer a resolution of up to 1024 pulses
                                                            per revolution.
                                                            With a diameter of just 24 mm this encoder is ideal for use where
                                                            space is tight.






                                                       RoHS





                    -20°... +85°C
          High rotational  Temperature  Shock / vibration  Short-circuit  Magnetic field  Optical sensor
            speed    range    resistant  proof   proof

          Reliable                                          Versatile
          •   Robust bearing construction.                  •   Ideally suited for use in small devices.
          •   Cable outlet boasts high degree of strain relief thanks to    •   Meets the certification requirements of railways
            multiple clamping.                                standard EN 50121.
          •   Short-circuit proof inputs.



          Order code         05.2400 . X X X X . XXXX       If for each parameter of an encoder the underlined preferred option is selected,
                                                            then the delivery time will be 10 working days for a maximum of 10 pieces.
          Shaft version         Type     a b c d     e      Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
          a     Flange                  c     Output circuit / power supply        e     Pulse rate
           1  =  ø 24 mm [0.94“]         1  =  Push-Pull (without inverted signal) / 5 ... 24 V DC        4, 6, 8, 10, 16, 20, 25, 36, 40, 50, 60,
           3  =  ø 28 mm [1.10“]         2  =  Push-Pull (with inverted signal) / 5 ... 24 V DC        80, 100, 120, 125, 180, 200, 250, 300,
           2  =  ø 30 mm [1.18“]         3  =  Push-Pull (without inverted signal) / 8 ... 30 V DC        360, 400, 500, 512, 1000, 1024
                                         4  =  Push-Pull (with inverted signal) / 8 ... 30 V DC        (e.g. 360 pulses => 0360)
          b     Shaft (ø x L)
           1  =  ø 4 x 10 mm [0.16 x 0.39“]  d     Type of connection              Stock types
           3  =  ø 5 x 10 mm [0.20 x 0.39“], with flat   1  =  axial cable, 2 m [6.56‘] PVC        05.2400.1122.0050
           2  =  ø 6 x 10 mm [0.24 x 0.39“]   A  =  axial cable, special length PVC *)        05.2400.1122.0360
                                         2  =  radial cable, 2 m [6.56‘] PVC            05.2400.1122.0500
           4  = ø 1/4“ x 10 mm [1/4“ x 0.39“], with flat  1)   B  = radial cable, special length PVC *)        05.2400.1122.1000
           6  =  ø 6 x 10 mm [0.24 x 0.39“], with flat  1)   *)   Available special lengths (connection types A, B):        05.2400.1122.1024
                                              3, 5, 8, 10, 15 m [9.84, 16.40, 26.25, 32.80, 49.21‘]
                                              order code expansion .XXXX = length in dm        Optional on request
                                              ex.: 05.2400.122A.1024.0030 (for cable length 3 m)        -  other pulse rates




















         1)  US version.
         48     www.kuebler.com                                                 © Fritz Kübler GmbH, subject to errors and changes. 02/2015
