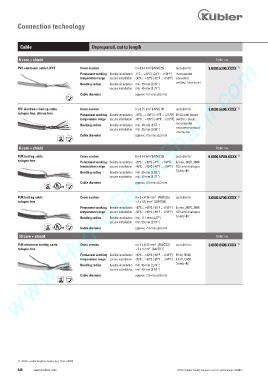

Page 450 - Keubler Motion Sensors

Connection technology

Cable Unprepared, cut to length

www.HydroSanatSharif.com
5 core + shield Order no.
2
PVC electronic cable LiYCY Cross section 5 x 0.14 mm [AWG25] suitable for: 8.0000.6300.XXXX 1)
Permanent working flexible installation -5°C ... +70°C [+23°F ... +158°F] incremental
temperature range secure installation -30°C ... +70°C [-22°F ... +158°F] encoders
without inversions
Bending radius flexible installation min. 70 mm [2.76“]
secure installation min. 45 mm [1.77“]
Cable diameter approx. 4.7 mm ±0.2 mm
RoHS

TPE electronic trailing cable Cross section 5 x 0.75 mm [AWG18] suitable for: 8.0000.6600.XXXX 1)
2
halogen-free, silicon-free Permanent working flexible installation -35°C ... +100°C [-31°F ... +212°F] H100 with speed
temperature range secure installation -40°C ... +100°C [-40°F ... +212°F] switch, robust
incremental
Bending radius flexible installation min. 40 mm [1.57“]
secure installation min. 25 mm [0.98“] encoders without
inversions
Cable diameter approx. 7.5 mm ±0.3 mm
RoHS
8 core + shield Order no.

PUR trailing cable Cross section 8 x 0.14 mm [AWG25] suitable for: 8.0000.6P00.XXXX 1)
2
halogen-free Permanent working flexible installation -20°C ... +90°C [-4°F ... +194°F] Limes, 365X, 368X
temperature range secure installation -40°C ... +90°C [-40°F ... +194°F] SSI and analogue
Safety-M
Bending radius flexible installation min. 65 mm [2.56“]
secure installation min. 45 mm [1.77“]
Cable diameter approx. 5.5 mm ±0.2 mm
RoHS

2
PUR trailing cable Cross section 3 x 2 x 0.14 mm [AWG25] suitable for: 8.0000.6F00.XXXX 1)
2
halogen-free + 2 x 0.5 mm [AWG20]
Permanent working flexible installation -40°C ... +90°C [-40°F ... +194°F] Limes, 365X, 368X
temperature range secure installation -50°C ... +90°C [-58°F ... +194°F] SSI and analogue
Safety-M
Bending radius flexible installation min. 111 mm [4.37“]
secure installation min. 55 mm [2.17“]
RoHS
Cable diameter approx. 7.4 mm ±0.3 mm
10 core + shield Order no.
2
PUR electronic trailing cable Cross section 4 x 2 x 0.25 mm [AWG23] suitable for: 8.0000.6400.XXXX 1)
halogen-free + 2 x 1 mm [AWG17]
2
Permanent working flexible installation -40°C ... +90°C [-40°F ... +194°F] H100, H120
temperature range secure installation -50°C ... +90°C [-58°F ... +194°F] LA10 , LA50
Safety-M
Bending radius flexible installation min. 95 mm [3.74“]
secure installation min. 40 mm [1.57“]
Cable diameter approx. 7.9 mm ±0.8 mm
RoHS

1) XXXX = cable length in meters (e.g. 10 m = 0010)
