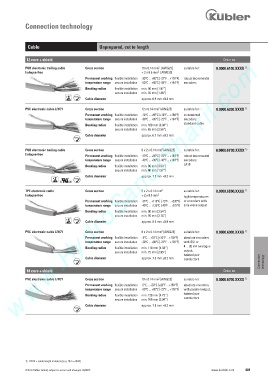

Page 451 - Keubler Motion Sensors

Connection technology

Cable Unprepared, cut to length

www.HydroSanatSharif.com
12 core + shield Order no.
2
PUR electronic trailing cable Cross section 10 x 0.14 mm [AWG25] suitable for: 8.0000.6100.XXXX 1)
2
halogen-free + 2 x 0.5 mm [AWG20]
Permanent working flexible installation -30°C ... +80°C [-22°F ... +176°F] robust incremental
temperature range secure installation -50°C ... +90°C [-58°F ... +194°F] encoders
Bending radius flexible installation min. 50 mm [1.97“]
secure installation min. 35 mm [1.38“]
RoHS
Cable diameter approx. 6.9 mm ±0.3 mm
2
PVC electronic cable LiYCY Cross section 12 x 0.14 mm [AWG25] suitable for: 8.0000.6200.XXXX 1)
Permanent working flexible installation -10°C ... +90°C [+14°F ... +194°F] incremental
temperature range secure installation -30°C ... +90°C [-22°F ... +194°F] encoders
standard cable
Bending radius flexible installation min. 100 mm [3.94“]
secure installation min. 65 mm [2.56“]
Cable diameter approx. 6.7 mm ±0.2 mm
RoHS

2
PUR electronic trailing cable Cross section 6 x 2 x 0.14 mm [AWG25] suitable for: 8.0000.6Y00.XXXX 1)
halogen-free
Permanent working flexible installation -30°C ... +90°C [-22°F ... +194°F] robust incremental
temperature range secure installation -40°C ... +90°C [-40°F ... +194°F] encoders
LA10
Bending radius flexible installation min. 90 mm [3.54“]
secure installation min. 40 mm [1.57“]
Cable diameter approx. 7.5 mm ±0.2 mm
RoHS
TPE electronic cable Cross section 5 x 2 x 0.14 mm 2 suitable for: 8.0000.6E00.XXXX 1)
halogen-free + 2 x 0.5 mm 2 high temperatures
Permanent working flexible installation -25°C ... +110°C [-13°F ... +230°F] or encoders with
temperature range secure installation -40°C ... +135°C [-40°F ... +275°F] sine wave output
Bending radius flexible installation min. 90 mm [3.54“]
secure installation min. 70 mm [2.76“]
RoHS
Cable diameter approx. 8.5 mm ±0.9 mm
2
PVC electronic cable LiYCY Cross section 6 x 2 x 0.14 mm [AWG25] suitable for: 8.0000.6900.XXXX 1)
Permanent working flexible installation -5°C ... +70°C [+23°F ... +158°F] absolute encoders
temperature range secure installation -30°C ... +80°C [-22°F ... +176°F] with SSI or
4 ... 20 mA analogue
Bending radius flexible installation min. 110 mm [4.33“]
secure installation min. 75 mm [2.95“] output,
twisted pair
Connection technology
Cable diameter approx. 7.3 mm ±0.2 mm
RoHS conductors
18 core + shield Order no.
2
PVC electronic cable LiYCY Cross section 18 x 0.14 mm [AWG25] suitable for: 8.0000.6700.XXXX 1)
Permanent working flexible installation -5°C ... +70°C [+23°F ... +158°F] absolute encoders
temperature range secure installation -30°C ... +80°C [-22°F ... +176°F] with parallel output,
twisted pair
Bending radius flexible installation min. 120 mm [4.72“]
secure installation min. 100 mm [3.94“] conductors
Cable diameter approx. 7.8 mm ±0.2 mm
RoHS

1) XXXX = cable length in meters (e.g. 10 m = 0010)
