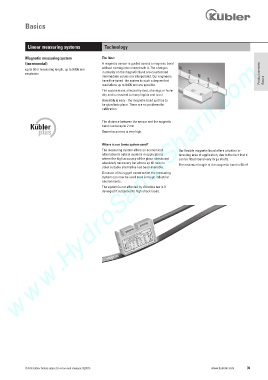

Basics
Linear measuring systems
Magnetic measuring system
www.HydroSanatSharif.com
(incremental)
up to 90 m measuring length, up to 0.005 mm
resolution
© Fritz Kübler GmbH, subject to errors and changes. 02/2015
Technology
The idea:
A magnetic sensor is guided across a magnetic band
without coming into contact with it. The changes
in polarity on the magnetic band are counted and Product overview
intermediate values are interpolated. Our engineers
have fine-tuned the system to such a degree that Basics
resolutions up to 0.005 mm are possible.
The system is not affected by dust, shavings or humi-
dity and is resistant to many liquids and to oil.
Assembly is easy - the magnetic band just has to
be glued into place. There are no problems for
calibration.
The distance between the sensor and the magnetic
band can be up to 2 mm.
Repeat accuracy is very high.
Where is our Limes system used?
The measuring system offers an economical Our flexible magnetic band offers a further in-
alternative to optical systems in applications teresting area of application, due to the fact that it
where the high accuracy of the glass rules is not can be fitted round very large shafts.
absolutely necessary but where up till now no
The maximum length of the magnetic band is 90 m!
other suitable alternative has been available.
Because of its rugged construction the measuring
system can now be used even in tough industrial
environments.
The system is not affected by vibration nor is it
damaged if subjected to high shock loads.
