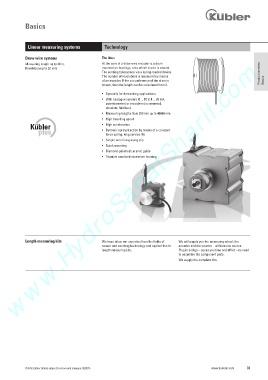

Basics
Linear measuring systems Technology
Draw wire systems The idea:
www.HydroSanatSharif.com
Measuring length up to 40 m, At the core of a draw wire encoder is a drum
Resolution up to 0.1 mm mounted on bearings, onto which a wire is wound.
The winding takes place via a spring-loaded device. Product overview
The number of revolutions is measured by means
of an encoder. If the circumference of the drum is Basics
known, then the length can be calculated from it.
• Specially for demanding applications
• With analogue sensors (0 ... 10 V, 4 ... 20 mA,
potentiometer) or encoders (incremental,
absolute, fieldbus)
• Measuring lengths from 250 mm up to 40000 mm
• High travelling speed
• High acceleration
• Dynamic spring traction by means of a constant
force spring, long service life
• Simple wire fixing using clip
• Quick mounting
• Diamond-polished ceramic guide
• Titanium anodised aluminium housing
Length measuring kits We have taken our expertise from the fields of We will supply you the measuring wheel, the
sensor and counting technology and applied this to encoder and the counter – all from one source.
length measuring kits. Plug in and go – saves you time and effort – no need
to assemble the component parts.
We supply the complete kits.
© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 37
