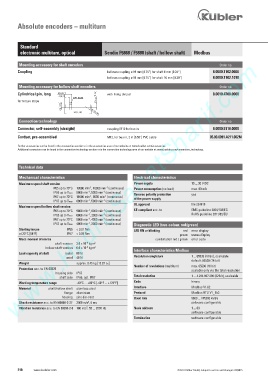

Page 320 - Keubler Motion Sensors

Absolute encoders – multiturn

Standard
electronic multiturn, optical Sendix F5868 / F5888 (shaft / hollow shaft) Modbus
www.HydroSanatSharif.com
Mounting accessory for shaft encoders Order no.
Coupling bellows coupling ø 19 mm [0.75“] for shaft 6 mm [0.24“] 8.0000.1102.0606
bellows coupling ø 19 mm [0.75“] for shaft 10 mm [0.39“] 8.0000.1102.1010

Mounting accessory for hollow shaft encoders Order no.
Cylindrical pin, long with fixing thread 8.0010.4700.0000

6: > @ P
for torque stops

0 5

Connection technology Order no.
Connector, self-assembly (straight) coupling M12 for bus in 8.0000.5116.0000

Cordset, pre-assembled M12, for bus in, 2 m [6.56‘] PVC cable 05.00.6091.A211.002M
Further accessories can be found in the accessories section or in the accessories area of our website at: www.kuebler.com/accessories.
Additional connectors can be found in the connection technology section or in the connection technology area of our website at: www.kuebler.com/connection_technology.

Technical data

Mechanical characteristics Electrical characteristics
Maximum speed shaft version Power supply 10 ... 30 V DC
-1
-1
IP65 up to 70°C 12000 min , 10000 min (continuous) Power consumption (no load) max. 80 mA
-1
-1
IP65 up to Tmax 8000 min , 5000 min (continuous) Reverse polarity protection yes
-1
-1
IP67 up to 70°C 11000 min , 9000 min (continuous) of the power supply
-1
IP67 up to Tmax 8000 min , 5000 min (continuous)
-1
UL approval file 224618
Maximum speed hollow shaft version
IP65 up to 70°C 9000 min , 6000 min (continuous) CE compliant acc. to EMC guideline 2004/108/EC
-1
-1
-1
IP65 up to Tmax 6000 min , 3000 min (continuous) RoHS guideline 2011/65/EU
-1
-1
IP67 up to 70°C 8000 min , 4000 min (continuous)
-1
IP67 up to Tmax 4000 min , 2000 min (continuous) Diagnostic LED (two-colour, red/green)
-1
-1
Starting torque IP65 < 0.01 Nm LED ON or blinking red error display
at 20°C [68°F] IP67 < 0.05 Nm green status display
Mass moment of inertia combination red / green error code
shaft version 3.0 x 10 kgm
-6
2
-6
hollow shaft version 6.0 x 10 kgm 2
Interface characteristics Modbus
Load capacity of shaft radial 80 N
axial 40 N Resolution singleturn 1 ... 65536 (16 bit), scaleable
default: 65536 (16 bit)
Weight approx. 0.45 kg [15.87 oz]
Number of revolutions (multiturn) max. 65536 (16 bit)
Protection acc. to EN 60529 scalable only via the total resolution
housing side IP67
shaft side IP65, opt. IP67 Total resolution 1 ... 4.294.967.296 (32 bit), scaleable
Working temperature range -40°C ... +80°C [-40°F ... +176°F] Code binary
Material shaft/hollow shaft stainless steel Interface Modbus V1.02
flange aluminium Protocol Modbus RTU V1_1b3
housing zinc die-cast Baud rate 9600 ... 115200 kbit/s
Shock resistance acc. to EN 60068-2-27 2500 m/s , 6 ms software configurable
2
2
Vibration resistance acc. to EN 60068-2-6 100 m/s , 55 ... 2000 Hz Node address 1 ... 63
software configurable
Termination software configurable
318 www.kuebler.com © Fritz Kübler GmbH, subject to errors and changes. 02/2015
