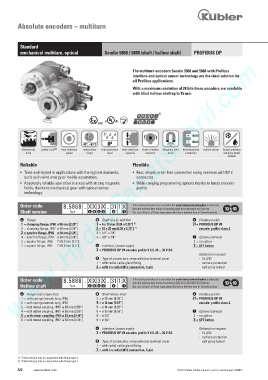

Absolute encoders – multiturn

Standard
mechanical multiturn, optical Sendix 5868 / 5888 (shaft / hollow shaft) PROFIBUS DP
www.HydroSanatSharif.com

The multiturn encoders Sendix 5868 and 5888 with Proﬁbus
interface and optical sensor technology are the ideal solution for
all Proﬁbus applications.
With a maximum resolution of 28 bits these encoders are available
with blind hollow shaft up to 15 mm.

RoHS
2/22

-40°... +80°C IP
Mechanical Safety-Lock TM High rotational Temperature High protection High shaft load Shock / vibration Magnetic ﬁeld Reverse polarity Optical sensor Surface protection
drive speed range level capacity resistant proof protection salt spray-tested
optional
Reliable Flexible
• Tried-and-tested in applications with the highest demands, • Fast, simple, error-free connection using versions with M12
such as in wind energy or mobile automation. connector.
• Absolutely reliable operation in areas with strong magnetic • Wide-ranging programming options thanks to latest encoder
ﬁelds, thanks to mechanical gear with optical sensor proﬁle.
technology.

Order code 8.5868 . X X 3 X . 31 1 X If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Shaft version Type a b c d e f Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange b Shaft (ø x L), with ﬂat e Fieldbus proﬁle
1 = clamping ﬂange, IP65 ø 58 mm [2.28“] 1 = 6 x 10 mm [0.24 x 0.39“] 1) 31 = PROFIBUS DP V0
3 = clamping ﬂange, IP67 ø 58 mm [2.28“] 2 = 10 x 20 mm[0.39 x 0.79“] 2) encoder proﬁle class 2
2 = synchro ﬂange, IP65 ø 58 mm [2.28“] 3 = 1/4“ x 7/8“
4 = synchro ﬂange, IP67 ø 58 mm [2.28“] 4 = 3/8“ x 7/8“ f Options (service)
5 = square ﬂange, IP65 63.5 mm [2.5“] 2 = no option
7 = square ﬂange, IP67 63.5 mm [2.5“] c Interface / power supply 3 = SET button
3 = PROFIBUS DP V0 encoder proﬁle V 1.1, 10 ... 30 V DC
Optional on request
d Type of connection, removable bus terminal cover - Ex 2/22
1 = with radial cable gland ﬁtting - surface protection
2 = with 3 x radial M12 connectors, 5-pin salt spray tested

Order code 8.5888 . X X 3 X . 31 1 X If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Hollow shaft Type a b c d e f Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange with torque stop b Blind hollow shaft e Fieldbus proﬁle
1 = with spring element, long, IP65 3 = ø 10 mm [0.39“] 31 = PROFIBUS DP V0
2 = with spring element, long, IP67 4 = ø 12 mm [0.47“] encoder proﬁle class 2
3 = with stator coupling, IP65 ø 65 mm [2.56“] 5 = ø 14 mm [0.55“]
4 = with stator coupling, IP67 ø 65 mm [2.56“] 6 = ø 15 mm [0.59“] f Options (service)
5 = with stator coupling, IP65 ø 63 mm [2.48“] 8 = ø 3/8“ 2 = no option
6 = with stator coupling, IP67 ø 63 mm [2.48“] 9 = ø 1/2“ 3 = SET button

c Interface / power supply Optional on request
3 = PROFIBUS DP V0 encoder proﬁle V 1.1, 10 ... 30 V DC - Ex 2/22
- surface protection
d Type of connection, removable bus terminal cover salt spray tested
1 = with radial cable gland ﬁtting
2 = with 3 x radial M12 connectors, 5-pin

1) Preferred type only in conjunction with ﬂange type 2.
2) Preferred type only in conjunction with ﬂange type 1.
322 www.kuebler.com © Fritz Kübler GmbH, subject to errors and changes. 02/2015
