Absolute encoders – multiturn

Standard
mechanical multiturn, optical Sendix 5863 / 5883 (shaft / hollow shaft) SSI / BiSS
www.HydroSanatSharif.com

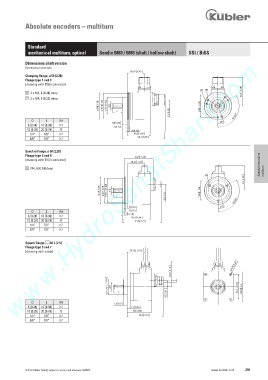

Dimensions shaft version
Dimensions in mm [inch]

Clamping flange, ø 58 [2.28]
Flange type 1 and 3
(drawing with M23 connector)

1 3 x M3, 6 [0.24] deep
2 3 x M4, 8 [0.32] deep
> @ > @ '
> @
> @ [ ƒ
/
D L Fit ƒ
6 [0.24] 10 [0.39] h7 > @
10 [0.39] 20 [0.79] f7 > @
1/4“ 7/8“ h7

3/8“ 7/8“ h7

Synchro flange, ø 58 [2.28]
Flange type 2 and 4
(drawing with M12 connector)
Absolute encoders
1 M4, 6 [0.24] deep multiturn

K > @ '

> @ [ ƒ
/
ƒ
D L Fit
6 [0.24] 10 [0.39] h7

10 [0.39] 20 [0.79] f7
1/4“ 7/8“ h7
3/8“ 7/8“ h7

Square flange, 63.5 [2.5]
Flange type 5 and 7
(drawing with cable)

1 25

K '
/

D L Fit
6 [0.24] 10 [0.39] h7
10 [0.39] 20 [0.79] f7
1/4“ 7/8“ h7
3/8“ 7/8“ h7

© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 291
