Absolute encoders – multiturn

Standard
mechanical multiturn, optical Sendix 5863 / 5883 (shaft / hollow shaft) SSI / BiSS
www.HydroSanatSharif.com

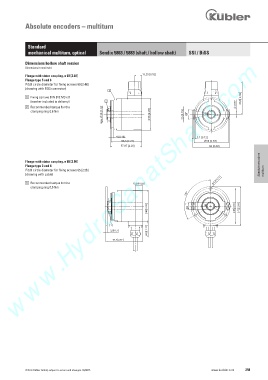

Dimensions hollow shaft version
Dimensions in mm [inch]
> @
Flange with stator coupling, ø 63 [2.48]
Flange type 5 and 6
Pitch circle diameter for fixing screws 63 [2.48]
(drawing with M23 connector)

1 Fixing screws DIN 912 M3 x 8
(washer included in delivery) ' +
2 Recommended torque for the
clamping ring 0.6 Nm > @
> @ > @ ƒ
PD[

> @ > @
> @ > @
> @ > @

Flange with stator coupling, ø 65 [2.56]
Flange type 3 and 4 Absolute encoders
Pitch circle diameter for fixing screws 65 [2.56] multiturn
(drawing with cable)

1 Recommended torque for the
clamping ring 0.6 Nm
ƒ

+ '
