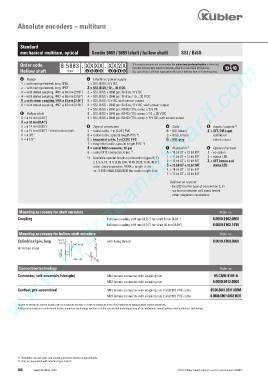

Absolute encoders – multiturn

Standard
mechanical multiturn, optical Sendix 5863 / 5883 (shaft / hollow shaft) SSI / BiSS
www.HydroSanatSharif.com
Order code 8.5883 . X X X X . X X 2 X If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Hollow shaft Type a b c d e f g h Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange c Interface / power supply
1 = with spring element, long, IP65 1 = SSI, BiSS / 5 V DC
2 = with spring element, long, IP67 2 = SSI, BiSS / 10 ... 30 V DC
3 = with stator coupling, IP65 ø 65 mm [2.56“] 3 = SSI, BiSS + 2048 ppr. SinCos / 5 V DC
4 = with stator coupling, IP67 ø 65 mm [2.56“] 4 = SSI, BiSS + 2048 ppr. SinCos / 10 ... 30 V DC
5 = with stator coupling, IP65 ø 63 mm [2.48“] 5 = SSI, BiSS / 5 V DC, with sensor output
6 = with stator coupling, IP67 ø 63 mm [2.48“] 6 = SSI, BiSS + 2048 ppr. SinCos / 5 V DC, with sensor output
7 = SSI, BiSS + 2048 ppr. RS422 (TTL-comp.) / 5 V DC
b Hollow shaft 8 = SSI, BiSS + 2048 ppr. RS422 (TTL-comp.) / 10 ... 30 V DC
3 = ø 10 mm [0.39“] 9 = SSI, BiSS + 2048 ppr. RS422 (TTL-comp.) / 5 V DC, with sensor output
4 = ø 12 mm [0.47“]
5 = ø 14 mm [0.55“] d Type of connection e Code g Inputs / outputs 1)

6 = ø 15 mm [0.59“] – blind hollow shaft 2 = radial cable, 1 m [3.28‘] PVC B = SSI, binary 2 = SET, DIR input
8 = ø 3/8“ B = radial cable, special length PVC *) C = BiSS, binary additional
9 = ø 1/2“ E = tangential cable, 1 m [3.28‘] PVC G = SSI, gray status output
F = tangential cable, special length PVC *)
4 = radial M23 connector, 12-pin f Resolution 1) h Options (service)
6 = radial M12 connector, 8-pin 2) A = 10 bit ST + 12 bit MT 1 = no option
*) Available special lengths (connection types B, F): 1 = 11 bit ST + 12 bit MT 2 = status LED
2, 3, 5, 8, 10, 15 m [5.56, 9.84, 16.40, 26.25, 32.80, 49.21‘] 2 = 12 bit ST + 12 bit MT 3 = SET button and
order code expansion .XXXX = length in dm 3 = 13 bit ST + 12 bit MT status LED
ex.: 8.5883.542B.G323.0030 (for cable length 3 m) 4 = 14 bit ST + 12 bit MT
7 = 17 bit ST + 12 bit MT
Optional on request
- Ex 2/22 (not for type of connection E, F)
- surface protection salt spray tested
- other singleturn resolutions

Mounting accessory for shaft encoders Order no.
Coupling bellows coupling ø 19 mm [0.75“] for shaft 6 mm [0.24“] 8.0000.1102.0606
bellows coupling ø 19 mm [0.75“] for shaft 10 mm [0.39“] 8.0000.1102.1010
Mounting accessory for hollow shaft encoders Order no.
Cylindrical pin, long with fixing thread 8.0010.4700.0000

6: > @ P
for torque stops

0 5

Connection technology Order no.
Connector, self-assembly (straight) M12 female connector with coupling nut 05.CMB 8181-0
M23 female connector with coupling nut 8.0000.5012.0000
Cordset, pre-assembled M12 female connector with coupling nut, 2 m [6.56‘] PVC cable 05.00.6041.8211.002M
M23 female connector with coupling nut, 2 m [6.56‘] PVC cable 8.0000.6901.0002.0031
Further accessories can be found in the accessories section or in the accessories area of our website at: www.kuebler.com/accessories.
Additional connectors can be found in the connection technology section or in the connection technology area of our website at: www.kuebler.com/connection_technology.

1) Resolution, preset value and counting direction factory-programmable.
2) Only in conjunction with interface type 1 and 2.
288 www.kuebler.com © Fritz Kübler GmbH, subject to errors and changes. 02/2015
