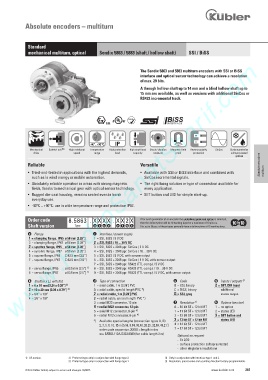

Absolute encoders – multiturn

Standard
mechanical multiturn, optical Sendix 5863 / 5883 (shaft / hollow shaft) SSI / BiSS
www.HydroSanatSharif.com

The Sendix 5863 and 5883 multiturn encoders with SSI or BiSS
interface and optical sensor technology can achieve a resolution
of max. 29 bits.
A through hollow shaft up to 14 mm and a blind hollow shaft up to
15 mm are available, as well as versions with additional SinCos or
RS422 incremental track.

RoHS
2/22

-40°... +90°C IP
Mechanical Safety-Lock TM High rotational Temperature High protection High shaft load Shock / vibration Magnetic field Reverse polarity SinCos Surface protection
drive speed range level capacity resistant proof protection salt spray-tested
optional
Reliable Versatile Absolute encoders
• Tried-and-tested in applications with the highest demands, • Available with SSI or BiSS interface and combined with multiturn
such as in wind energy or mobile automation. SinCos incremental signals.
• Absolutely reliable operation in areas with strong magnetic • The right fixing solution or type of connection available for
fields, thanks to mechanical gear with optical sensor technology. every application.
• Rugged die-cast housing, remains sealed even in harsh • SET button and LED for simple start-up.
everyday use.
• -40°C ... +90°C: use in wide temperature range and protection IP67.

Order code 8.5863 . X X X X . X X 2 X If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Shaft version Type a b c d e f g h Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange c Interface / power supply
1 = clamping flange, IP65 ø 58 mm [2.28“] 1 = SSI, BiSS / 5 V DC
3 = clamping flange, IP67 ø 58 mm [2.28“] 2 = SSI, BiSS / 10 ... 30 V DC
2 = synchro flange, IP65 ø 58 mm [2.28“] 3 = SSI, BiSS + 2048 ppr. SinCos / 5 V DC
4 = synchro flange, IP67 ø 58 mm [2.28“] 4 = SSI, BiSS + 2048 ppr. SinCos / 10 ... 30 V DC
5 = square flange, IP65 63.5 mm [2.5“] 5 = SSI, BiSS / 5 V DC, with sensor output
7 = square flange, IP67 63.5 mm [2.5“] 6 = SSI, BiSS + 2048 ppr. SinCos / 5 V DC, with sensor output
7 = SSI, BiSS + 2048 ppr. RS422 (TTL-comp.) / 5 V DC
6 = servo flange, IP65 ø 63.5 mm [2.5“] 1) 8 = SSI, BiSS + 2048 ppr. RS422 (TTL-comp.) / 10 ... 30 V DC
8 = servo flange, IP67 ø 63.5 mm [2.5“] 1) 9 = SSI, BiSS + 2048 ppr. RS422 (TTL-comp.) / 5 V DC, with sensor output

b Shaft (ø x L), with flat d Type of connection e Code g Inputs / outputs 5)

1 = 6 x 10 mm [0.24 x 0.39“] 2) 1 = axial cable, 1 m [3.28‘] PVC B = SSI, binary 2 = SET, DIR input
2 = 10 x 20 mm [0.39 x 0.79“] 3) A = axial cable, special length PVC *) C = BiSS, binary additional
3 = 1/4“ x 7/8“ 2 = radial cable, 1 m [3.28‘] PVC G = SSI, gray status output
4 = 3/8“ x 7/8“ B = radial cable, special length PVC *)
3 = axial M23 connector, 12-pin f Resolution 5) h Options (service)
4 = radial M23 connector, 12-pin A = 10 bit ST + 12 bit MT 1 = no option
5 = axial M12 connector, 8-pin 4) 1 = 11 bit ST + 12 bit MT 2 = status LED
6 = radial M12 connector, 8-pin 4) 2 = 12 bit ST + 12 bit MT 3 = SET button and
*) Available special lengths (connection types A, B): 3 = 13 bit ST + 12 bit MT status LED
2, 3, 5, 8, 10, 15 m [5.56, 9.84, 16.40, 26.25, 32.80, 49.21‘] 4 = 14 bit ST + 12 bit MT
order code expansion .XXXX = length in dm 7 = 17 bit ST + 12 bit MT
ex.: 8.5863.112A.G323.0030 (for cable length 3 m)
Optional on request
- Ex 2/22
- surface protection salt spray tested
- other singleturn resolutions

1) US version. 2) Preferred type only in conjunction with flange type 2. 4) Only in conjunction with interface type 1 and 2.
3) Preferred type only in conjunction with flange type 1. 5) Resolution, preset value and counting direction factory-programmable.
© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 287
