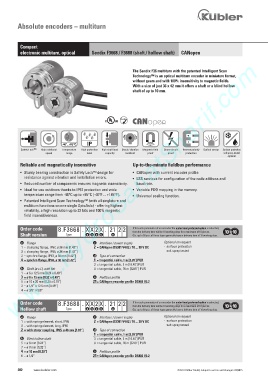

Absolute encoders – multiturn

Compact
electronic multiturn, optical Sendix F3668 / F3688 (shaft / hollow shaft) CANopen
www.HydroSanatSharif.com

The Sendix F36 multiturn with the patented Intelligent Scan
Technology™ is an optical multiturn encoder in miniature format,
without gears and with 100% insensitivity to magnetic fields.
With a size of just 36 x 42 mm it offers a shaft or a blind hollow
shaft of up to 10 mm.

RoHS

-40°... +85°C IP
Safety-Lock TM High rotational Temperature High protection High shaft load Shock / vibration Magnetic field Short-circuit Reverse polarity Optical sensor Surface protection
speed range level capacity resistant proof proof protection salt spray-tested
optional
Reliable and magnetically insensitive Up-to-the-minute fieldbus performance
• Sturdy bearing construction in Safety Lock™ design for • CANopen with current encoder profile.
resistance against vibration and installation errors. • LSS services for configuration of the node address and
• Reduced number of components ensures magnetic insensitivity. baud rate.
• Ideal for use outdoors thanks to IP67 protection and wide • Variable PDO mapping in the memory.
temperature range from -40°C up to +85°C [-40°F ... +185°F]. • Universal scaling function.
• Patented Intelligent Scan Technology™ (with all singleturn and
multiturn functions on one single OptoAsic) - offering highest
reliability, a high resolution up to 32 bits and 100% magnetic
field insensitiveness.

Order code 8.F3668 . X X 2 X . 21 2 2 If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Shaft version Type a b c d e Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange c Interface / power supply Optional on request
1 = clamping flange, IP67, ø 36 mm [1.42“] 2 = CANopen DS301 V4.02 / 10 ... 30 V DC - surface protection
3 = clamping flange, IP65, ø 36 mm [1.42“] salt spray tested
2 = synchro flange, IP67, ø 36 mm [1.42“] d Type of connection
4 = synchro flange, IP65, ø 36 mm [1.42“] 1 = tangential cable, 1 m [3.28‘] PUR
3 = tangential cable, 5 m [16.40‘] PUR
b Shaft (ø x L), with flat U = tangential cable, 10 m [32.81‘] PUR
1 = ø 6 x 12.5 mm [0.24 x 0.49“]
3 = ø 8 x 15 mm [0.32 x 0.49“] e Fieldbus profile
5 = ø 10 x 20 mm [0.39 x 0.79“] 21 = CANopen encoder profile DS406 V3.2
2 = ø 1/4” x 12.5 mm [0.49“]
4 = ø 3/8” x 5/8“

Order code 8.F3688 . X X 2 X . 21 2 2 If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Hollow shaft Type a b c d e Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.

a Flange c Interface / power supply Optional on request
1 = with spring element, short, IP65 2 = CANopen DS301 V4.02 / 10 ... 30 V DC - surface protection
3 = with spring element, long, IP65 salt spray tested
2 = with stator coupling, IP65, ø 46 mm [1.81“] d Type of connection
1 = tangential cable, 1 m [3.28‘] PUR
b Blind hollow shaft 3 = tangential cable, 5 m [16.40‘] PUR
5 = ø 6 mm [0.24“] U = tangential cable, 10 m [32.81‘] PUR
7 = ø 8 mm [0.32“]
4 = ø 10 mm [0.39“] e Fieldbus profile
6 = ø 1/4“ 21 = CANopen encoder profile DS406 V3.2

282 www.kuebler.com © Fritz Kübler GmbH, subject to errors and changes. 02/2015
