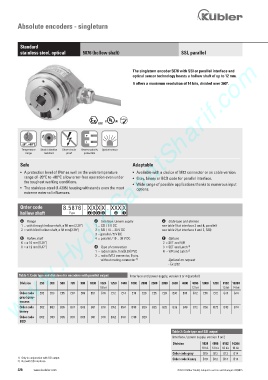

Absolute encoders - singleturn

Standard
stainless steel, optical 5876 (hollow shaft) SSI, parallel
www.HydroSanatSharif.com

The singleturn encoder 5876 with SSI or parallel interface and
optical sensor technology boasts a hollow shaft of up to 12 mm.

It offers a maximum resolution of 14 bits, divided over 360°.

RoHS
2/22

-20°... +80°C
Temperature Shock / vibration Short-circuit Reverse polarity Optical sensor
range resistant proof protection

Safe Adaptable
• A protection level of IP67 as well as the wide temperature • Available with a choice of M12 connector or as cable version.
range of -20°C to +80°C allow error-free operation even under • Gray, binary or BCD code for parallel interface.
the toughest working conditions. • Wide range of possible applications thanks to numerous input
• The stainless-steel (1.4305) housing withstands even the most options.
extreme external influences.

Order code 8.5876 . X X X X . XXX X
hollow shaft Type a b c d e f

a Flange c Interface / power supply e Code type and division
1 = with through hollow shaft, ø 58 mm [2.28“] 1 = SSI / 5 V DC see table 1 (at interface 3 and 4, parallel)
2 = with blind hollow shaft, ø 58 mm [2.28“] 2 = SSI / 10 ... 30 V DC see table 2 (at interface 1 and 2, SSI)
3 = parallel / 5 V DC
b Hollow shaft 4 = parallel / 10 ... 30 V DC f Options
6 = ø 10 mm [0.39“] 2 = SET and V/R
8 = ø 12 mm [0.47“] d Type of connection 3 = SET and Latch 2)
1 = radial cable, 1 m [3.28] PVC 4 = V/R and Latch 2)
2 = radial M12 connector, 8-pin,
without mating connector 1) Optional on request
- Ex 2/22

Table 1: Code type and divisions for encoders with parallel output Interface and power supply, version 3 or 4 (parallel)
Division 250 360 500 720 900 1000 1024 1250 1440 1800 2000 2500 2880 3600 4000 4096 5000 7200 8192 16384
10 bit 12 bit 13 bit 14 bit
Order code E02 E03 E05 E07 E09 E01 G10 E12 E14 E18 E20 E25 E28 E36 E40 G12 E50 E72 G13 G14
gray / gray-
excess
Order code B02 B03 B05 B07 B09 B01 B10 BA2 BA1 B18 B20 B25 B28 B36 B40 B12 B50 B72 B13 B14
binary
Order code D02 D03 D05 D07 D09 D01 D10 DA2 DA1 D18 D20
BCD

Table 2: Code type and SSI output
Interface / power supply, version 1 or 2
Division 1024 4096 8192 16384
10 bit 12 bit 13 bit 14 bit
Order code gray G10 G12 G13 G14
1) Only in conjunction with SSI output. Order code binary B10 B12 B13 B14
2) Not with SSI interface.
228 www.kuebler.com © Fritz Kübler GmbH, subject to errors and changes. 02/2015
