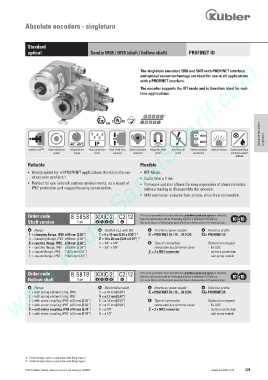

Absolute encoders - singleturn

Standard
optical Sendix 5858 / 5878 (shaft / hollow shaft) PROFINET IO
www.HydroSanatSharif.com

The singleturn encoders 5858 and 5878 with PROFINET interface
and optical sensor technology are ideal for use in all applications
with a PROFINET interface.
The encoder supports the IRT mode and is therefore ideal for real-
time applications.

RoHS
Absolute encoders
2/22

-40°... +85°C IP singleturn
Safety-Lock TM High rotational Temperature High protection High shaft load Shock / vibration Magnetic field Short-circuit Reverse polarity Optical sensor Surface protection
speed range level capacity resistant proof proof protection salt spray-tested
optional
Reliable Flexible
• Ideally suited for all PROFINET applications thanks to the use • IRT-Mode.
of encoder profile 4.1. • Cycle time ) 1 ms.
• Perfect for use in harsh outdoor environments, as a result of • Firmware updater allows for easy expansion of characteristics
IP67 protection and rugged housing construction. without having to disassemble the encoder.
• M12 connector ensures fast, simple, error-free connection.

Order code 8.5858 . X X C 2 . C2 12 If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Shaft version Type a b c d e Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange b Shaft (ø x L), with flat c Interface / power supply e Field bus profile
1 = clamping flange, IP65 ø 58 mm [2.28“] 1 = 6 x 10 mm [0.24 x 0.39“] 1) C = PROFINET IO / 10 ... 30 V DC C2 = PROFINET IO
3 = clamping flange, IP67 ø 58 mm [2.28“] 2 = 10 x 20 mm [0.39 x 0.79“] 2)
2 = synchro flange, IP65 ø 58 mm [2.28“] 3 = 1/4“ x 7/8“ d Type of connection Optional on request
4 = synchro flange, IP67 ø 58 mm [2.28“] 4 = 3/8“ x 7/8“ removable bus terminal cover - Ex 2/22
5 = square flange, IP65 63.5 mm [2.5“] 2 = 3 x M12 connector - surface protection
7 = square flange, IP67 63.5 mm [2.5“] salt spray tested

Order code 8.5878 . X X C 2 . C2 12 If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Hollow shaft Type a b c d e Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange b Blind hollow shaft c Interface / power supply e Field bus profile
1 = with spring element, long, IP65 3 = ø 10 mm [0.39“] C = PROFINET IO / 10 ... 30 V DC C2 = PROFINET IO
2 = with spring element, long, IP67 4 = ø 12 mm [0.47“]
3 = with stator coupling, IP65 ø 65 mm [2.56“] 5 = ø 14 mm [0.55“] d Type of connection Optional on request
4 = with stator coupling, IP67 ø 65 mm [2.56“] 6 = ø 15 mm [0.59“] removable bus terminal cover - Ex 2/22
5 = with stator coupling, IP65 ø 63 mm [2.48“] 8 = ø 3/8“ 2 = 3 x M12 connector - surface protection
6 = with stator coupling, IP67 ø 63 mm [2.48“] 9 = ø 1/2“ salt spray tested

1) Preferred type only in conjunction with flange type 2.
2) Preferred type only in conjunction with flange type 1.
