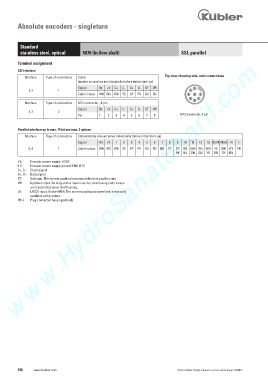

Page 232 - Keubler Motion Sensors

Absolute encoders - singleturn

Standard
stainless steel, optical 5876 (hollow shaft) SSI, parallel
www.HydroSanatSharif.com
Terminal assignment
SSI interface
Interface Type of connection Cable Top view of mating side, male contact base
(isolate unused wires individually before initial start-up)
Signal 0V +V C+ C- D+ D- ST VR 2
1, 2 1 3
Cable colour: WH BN GN YE GY PK BU RD 4 8 1
5 7
6
Interface Type of connection M12 connector , 8-pin
Signal 0V +V C+ C- D+ D- ST VR
1, 2 2
Pin: 1 2 3 4 5 6 7 8 M12 connector, 8 pin

Parallel interface up to max. 14 bit and max. 2 options
Interface Type of connection Cable (isolate unused wires individually before initial start-up)
Signal 0 V +V 1 2 3 4 5 6 7 8 9 10 11 12 13 ST/VR VR/LH 14 )
3, 4 1 Cable colour: WH BN GN YE GY PK BU RD BK VT GY RD WH BN WH YE WH GY PH
PK BU GN GN YE BN GY BN
+V: Encoder power supply +V DC
0 V: Encoder power supply ground GND (0 V)
C+, C-: Clock signal
D+, D-: Data signal
ST: Set input. The current position becomes defined as position zero.
VR: Up/down input. As long as this input is active, decreasing code values
are transmitted when shaft turning.
LH: LATCH input. Active HIGH. The current position is saved and is statically
available at the output.
PH ): Plug connector housing (shield)
