Absolute encoders - singleturn

Standard
stainless steel, optical 5876 (hollow shaft) SSI, parallel
www.HydroSanatSharif.com

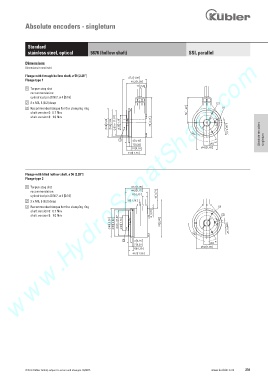

Dimensions
Dimensions in mm [inch]

Flange with through hollow shaft, ø 58 [2.28“]

Flange type 1

1 Torque stop slot
recommendation:
cylindrical pin DIN 7, ø 4 [0.16]
2 3 x M3, 5 [0.2] deep
3 Recommended torque for the clamping ring
shaft version 6: 0.7 Nm
shaft version 8: 1.0 Nm > @

K

ƒ Absolute encoders
singleturn
+
'

Flange with blind hollow shaft, ø 58 [2.28“]
Flange type 2
1 Torque stop slot
recommendation:
cylindrical pin DIN 7, ø 4 [0.16]

2 3 x M3, 5 [0.2] deep
3 Recommended torque for the clamping ring
shaft version 6: 0.7 Nm
shaft version 8: 1.0 Nm > @
K

ƒ

+
'

© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 231
