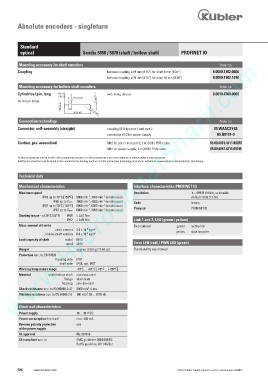

Page 226 - Keubler Motion Sensors

Absolute encoders - singleturn

Standard
optical Sendix 5858 / 5878 (shaft / hollow shaft) PROFINET IO
www.HydroSanatSharif.com
Mounting accessory for shaft encoders Order no.
Coupling bellows coupling ø 19 mm [0.75“] for shaft 6 mm [0.24“] 8.0000.1102.0606
bellows coupling ø 19 mm [0.75“] for shaft 10 mm [0.39“] 8.0000.1102.1010

Mounting accessory for hollow shaft encoders Order no.
Cylindrical pin, long with fixing thread 8.0010.4700.0000

6: > @ P
for torque stops

0 5

Connection technology Order no.
Connector, self-assembly (straight) coupling M12 for port 1 and port 2 05.WASCSY4S
connector M12 for power supply 05.B8141-0
Cordset, pre-assembled M12 for port 1 and port 2, 2 m [6.56‘] PUR cable 05.00.6031.4411.002M
M12 for power supply, 2 m [6.56‘] PUR cable 05.00.6061.6211.002M
Further accessories can be found in the accessories section or in the accessories area of our website at: www.kuebler.com/accessories.
Additional connectors can be found in the connection technology section or in the connection technology area of our website at: www.kuebler.com/connection_technology.

Technical data

Mechanical characteristics Interface characteristics PROFINET IO
Maximum speed Resolution 1 ... 65535 (16 bit), scaleable
-1
-1
IP65 up to 70°C [158°F] 9000 min , 7000 min (continuous) default: 8192 (13 bit)
-1
-1
IP65 up to Tmax 7000 min , 4000 min (continuous) Code binary
-1
-1
IP67 up to 70°C [158°F] 8000 min , 6000 min (continuous)
-1
IP67 up to Tmax 6000 min , 3000 min (continuous) Protocol PROFINET IO
-1
Starting torque - at 20°C [68°F] IP65 < 0.01 Nm
IP67 < 0.05 Nm Link 1 and 2, LED (green / yellow)
Mass moment of inertia Two colored green active link
-6
2
shaft version 3.0 x 10 kgm yellow data transfer
hollow shaft version 6.0 x 10 kgm 2
-6
Load capacity of shaft radial 80 N
axial 40 N Error LED (red) / PWR LED (green)
Weight approx. 0.50 kg [17.64 oz] Functionality see manual
Protection acc. to EN 60529
housing side IP67
shaft side IP65, opt. IP67
Working temperature range -40°C ... +85°C [-40°F ... +185°F]
Material shaft/hollow shaft stainless steel
flange aluminium
housing zinc die-cast
2
Shock resistance acc. to EN 60068-2-27 2500 m/s , 6 ms
Vibration resistance acc. to EN 60068-2-6 100 m/s , 55 ... 2000 Hz
2
Electrical characteristics
Power supply 10 ... 30 V DC
Power consumption (no load) max. 200 mA
Reverse polarity protection yes
of the power supply
UL approval file 224618
CE compliant acc. to EMC guideline 2004/108/EC
RoHS guideline 2011/65/EU

224 www.kuebler.com © Fritz Kübler GmbH, subject to errors and changes. 02/2015
