Absolute encoders - singleturn

Standard
optical Sendix 5858 / 5878 (shaft / hollow shaft) PROFIBUS DP
www.HydroSanatSharif.com

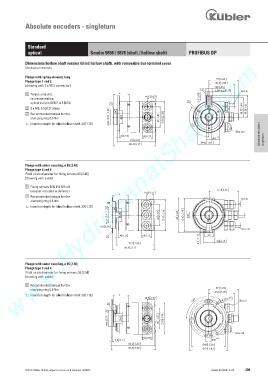

Dimensions hollow shaft version (blind hollow shaft), with removable bus terminal cover
Dimensions in mm [inch]

Flange with spring element, long
Flange type 1 and 2
(drawing with 3 x M12 connector)

> @ %XV LQ
1 Torque stop slot, /
recommendation:
cylindrical pin DIN 7, ø 4 [0.16]
2 3 x M3, 5.5 [0.21] deep
3 Recommended torque for the
clamping ring 0.6 Nm
L: Insertion depth for blind hollow shaft: 30 [1.18] PD[ ƒ
%XV RXW
+ Absolute encoders
' singleturn

Flange with stator coupling, ø 63 [2.48]
Flange type 5 and 6
Pitch circle diameter for fixing screws 63 [2.48]
(drawing with cable)
1 Fixing screws DIN 912 M3 x 8
(washer included in delivery)
/ /
2 Recommended torque for the %XV LQ %XV LQ
clamping ring 0.6 Nm

L: Insertion depth for blind hollow shaft: 30 [1.18]
+ +
' '
PD[ PD[

%XV RXW %XV RXW
ƒ ƒ

Flange with stator coupling, ø 65 [2.56]
Flange type 3 and 4
Pitch circle diameter for fixing screws, 65 [2.56]
(drawing with cable)
1 Recommended torque for the
clamping ring 0.6 Nm

L: Insertion depth for blind hollow shaft: 30 [1.18] /
ƒ %XV LQ

PD[

%XV RXW
+
'
