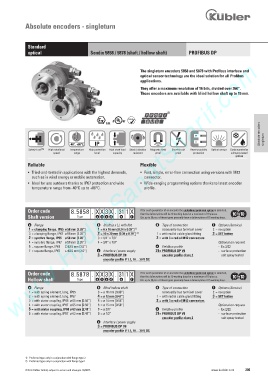

Absolute encoders - singleturn

Standard
optical Sendix 5858 / 5878 (shaft / hollow shaft) PROFIBUS DP
www.HydroSanatSharif.com

The singleturn encoders 5858 and 5878 with Profibus interface and
optical sensor technology are the ideal solution for all Profibus
applications.
They offer a maximum resolution of 16 bits, divided over 360°.
These encoders are available with blind hollow shaft up to 15 mm.

RoHS
Absolute encoders
2/22

-40°... +80°C IP singleturn
Safety-Lock TM High rotational Temperature High protection High shaft load Shock / vibration Magnetic field Short-circuit Reverse polarity Optical sensor Surface protection
speed range level capacity resistant proof proof protection salt spray-tested
optional
Reliable Flexible
• Tried-and-tested in applications with the highest demands, • Fast, simple, error-free connection using versions with M12
such as in wind energy or mobile automation. connector.
• Ideal for use outdoors thanks to IP67 protection and wide • Wide-ranging programming options thanks to latest encoder
temperature range from -40°C up to +80°C. profile.

Order code 8.5858 . X X 3 X . 31 1 X If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Shaft version Type a b c d e f Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange b Shaft (ø x L), with flat d Type of connection f Options (Service)
1 = clamping flange, IP65 ø 58 mm [2.28“] 1 = 6 x 10 mm [0.24 x 0.39“] 1) removable bus terminal cover 2 = no option
3 = clamping flange, IP67 ø 58 mm [2.28“] 2 = 10 x 20 mm [0.39 x 0.79“] 2) 1 = with radial cable gland fitting 3 = SET botton
2 = synchro flange, IP65 ø 58 mm [2.28“] 3 = 1/4“ x 7/8“ 2 = with 3 x radial M12 connectors
4 = synchro flange, IP67 ø 58 mm [2.28“] 4 = 3/8“ x 7/8“ Optional on request
5 = square flange, IP65 63.5 mm [2.5“] e Fieldbus profile - Ex 2/22
7 = square flange, IP67 63.5 mm [2.5“] c Interface / power supply 31 = PROFIBUS DP V0 - surface protection
3 = PROFIBUS DP V0 encoder profile class 2 salt spray tested
encoder profile V 1.1, 10 ... 30 V DC

Order code 8.5878 . X X 3 X . 31 1 X If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Hollow shaft Type a b c d e f Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange b Blind hollow shaft d Type of connection f Options (Service)
1 = with spring element, long, IP65 3 = ø 10 mm [0.39“] removable bus terminal cover 2 = no option
2 = with spring element, long, IP67 4 = ø 12 mm [0.47“] 1 = with radial cable gland fitting 3 = SET button
3 = with stator coupling, IP65 ø 65 mm [2.56“] 5 = ø 14 mm [0.55“] 2 = with 3 x radial M12 connectors
4 = with stator coupling, IP67 ø 65 mm [2.56“] 6 = ø 15 mm [0.59“] Optional on request
5 = with stator coupling, IP65 ø 63 mm [2.48“] 8 = ø 3/8“ e Fieldbus profile - Ex 2/22
6 = with stator coupling, IP67 ø 63 mm [2.48“] 9 = ø 1/2“ 31 = PROFIBUS DP V0 - surface protection
encoder profile class 2 salt spray tested
c Interface / power supply
3 = PROFIBUS DP V0
encoder profile V 1.1, 10 ... 30 V DC

1) Preferred type only in conjunction with flange type 2
2) Preferred type only in conjunction with flange type 1
