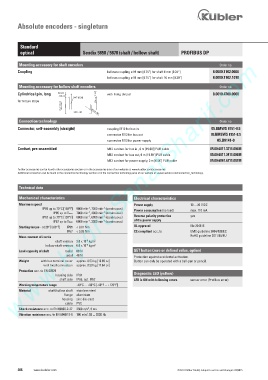

Absolute encoders - singleturn

Standard
optical Sendix 5858 / 5878 (shaft / hollow shaft) PROFIBUS DP
www.HydroSanatSharif.com
Mounting accessory for shaft encoders Order no.
Coupling bellows coupling ø 19 mm [0.75“] for shaft 6 mm [0.24“] 8.0000.1102.0606
bellows coupling ø 19 mm [0.75“] for shaft 10 mm [0.39“] 8.0000.1102.1010

Mounting accessory for hollow shaft encoders Order no.
Cylindrical pin, long with fixing thread 8.0010.4700.0000

6: > @ P
for torque stops

0 5

Connection technology Order no.
Connector, self-assembly (straight) coupling M12 for bus in 05.BMWS 8151-8.5
connector M12 for bus out 05.BMSWS 8151-8.5
connector M12 for power supply 05.B8141-0

Cordset, pre-assembled M12 cordset for bus in , 6 m [19.68‘] PUR cable 05.00.6011.3211.006M
M12 cordset for bus out, 6 m [19.68‘] PUR cable 05.00.6011.3411.006M
M12 cordset for power supply, 2 m [6.56‘] PUR cable 05.00.6061.6211.002M
Further accessories can be found in the accessories section or in the accessories area of our website at: www.kuebler.com/accessories.
Additional connectors can be found in the connection technology section or in the connection technology area of our website at: www.kuebler.com/connection_technology.

Technical data
Mechanical characteristics Electrical characteristics
Maximum speed Power supply 10 ... 30 V DC
-1
-1
IP65 up to 70°C [158°F] 9000 min , 7000 min (continuous) Power consumption (no load) max. 110 mA
-1
-1
IP65 up to Tmax 7000 min , 4000 min (continuous)
IP67 up to 70°C [158°F] 8000 min , 6000 min (continuous) Reverse polarity protection yes
-1
-1
-1
IP67 up to Tmax 6000 min , 3000 min (continuous) of the power supply
-1
Starting torque - at 20°C [68°F] IP65 < 0.01 Nm UL approval file 224618
IP67 < 0.05 Nm CE compliant acc. to EMC guideline 2004/108/EC
Mass moment of inertia RoHS guideline 2011/65/EU
shaft version 3.0 x 10 kgm
2
-6
-6
hollow shaft version 6.0 x 10 kgm 2
Load capacity of shaft radial 80 N SET button (zero or defined value, option)
axial 40 N
Protection against accidental activation.
Weight with bus terminal cover approx. 0.53 kg [18.69 oz] Button can only be operated with a ball-pen or pencil.
with fixed connection approx. 0.50 kg [17.64 oz]
Protection acc. to EN 60529
housing side IP67 Diagnostic LED (yellow)
shaft side IP65, opt. IP67 LED is ON with following errors sensor error (Profibus error)
Working temperature range -40°C ... +80°C [-40°F ... +176°F]
Material shaft/hollow shaft stainless steel
flange aluminium
housing zinc die-cast
cable PVC
Shock resistance acc. to EN 60068-2-27 2500 m/s , 6 ms
2
Vibration resistance acc. to EN 60068-2-6 100 m/s , 55 ... 2000 Hz
2
