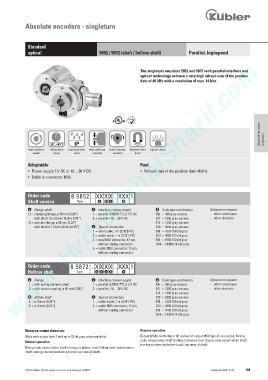

Page 185 - Keubler Motion Sensors

Absolute encoders - singleturn

Standard
optical 5852 / 5872 (shaft / hollow shaft) Parallel, highspeed
www.HydroSanatSharif.com

The singleturn encoders 5852 and 5872 with parallel interface and
optical technology achieve a very high refresh rate of the position
data of 40 kHz with a resolution of max. 14 bits.

RoHS
Absolute encoders

-20°... +85°C IP singleturn
High rotational Temperature High protection High shaft load Shock / vibration Magnetic field Optical sensor
speed range level capacity resistant proof

Adaptable Fast
• Power supply 5 V DC or 10 ... 30 V DC. • Refresh rate of the position data 40 kHz.
• Cable or connector M23.

Order code 8.5852 . XX X X . XXX 1
Shaft version Type a b c d

a Flange, shaft b Interface / power supply d Code type and division Optional on request
12 = clamping flange, ø 58 mm [2.28“] 1 = parallel (CMOS-TTL) / 5 V DC E03 = 360 gray-excess - other code types
with shaft 10 x 20 mm [0.39 x 0.79“] 3 = parallel / 10 ... 30 V DC E01 = 1000 gray-excess - other divisions
21 = synchro flange, ø 58 mm [2.28“] E14 = 1440 gray-excess
with shaft 6 x 10 mm [0.24 x 0.39“] c Type of connection E20 = 2000 gray-excess
1 = axial cable, 1 m [3.28‘] PVC G10 = 1024 (10 bit) gray
2 = radial cable, 1 m [3.28‘] PVC G12 = 4096 (12 bit) gray
3 = axial M23 connector, 17-pin, G13 = 8192 (13 bit) gray
without mating connector G14 = 16384 (14 bit) gray
5 = radial M23 connector, 17-pin,
without mating connector

Order code 8.5872 . X X X . XXX 1X
Hollow shaft Type a b c d e
a Flange c Interface / power supply e Code type and division Optional on request
1 = with spring element, short 1 = parallel (CMOS-TTL) / 5 V DC E03 = 360 gray-excess - other code types
3 = with stator coupling, ø 65 mm [2.56“] 3 = parallel / 10 ... 30 V DC E01 = 1000 gray-excess - other divisions
E14 = 1440 gray-excess
b Hollow shaft d Type of connection E20 = 2000 gray-excess
6 = ø 10 mm [0.39“] 1 = radial cable, 1 m [3.28‘] PVC G10 = 1024 (10 bit) gray
8 = ø 12 mm [0.47“] 2 = radial M23 connector, 17-pin, G12 = 4096 (12 bit) gray
without mating connector G13 = 8192 (13 bit) gray
G14 = 16384 (14 bit) gray

Reverse count direction Reverse operation:
(Only with output type 3 and up to 13 bit gray code available) Output MSB inverted (pin 16) instead of output MSB (pin 3) connected. Falling
code values when shaft turning clockwise (cw). Rising code values when shaft
Normal operation:
turning counterclockwise (ccw), top view of shaft.
Rising code values when shaft turning clockwise (cw). Falling code values when
shaft turning counterclockwise (ccw), top view of shaft.

© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 183
