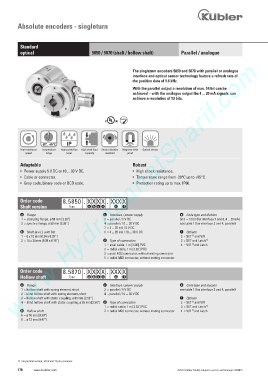

Page 180 - Keubler Motion Sensors

Absolute encoders - singleturn

Standard
optical 5850 / 5870 (shaft / hollow shaft) Parallel / analogue
www.HydroSanatSharif.com

The singleturn encoders 5850 and 5870 with parallel or analogue
interface and optical sensor technology feature a refresh rate of
the position data of 1.6 kHz.
With the parallel output a resolution of max. 14 bit can be
achieved – with the analogue output the 4 ... 20 mA signals can
achieve a resolution of 13 bits.

RoHS

-20°... +85°C IP
High rotational Temperature High protection High shaft load Shock / vibration Magnetic field Optical sensor
speed range level capacity resistant proof

Adaptable Robust
• Power supply 5 V DC or 10 ... 30 V DC. • High shock resistance.
• Cable or connector. • Temperature range from -20°C up to +85°C.
• Gray code, binary code or BCD code. • Protection rating up to max. IP66.

Order code 8.5850 . X X X X . XXX X
Shaft version Type a b c d e f
a Flange c Interface / power supply e Code type and division
1 = clamping flange, ø 58 mm [2.28“] 3 = parallel / 5 V DC G13 = 13 bit (for interface 7 and 8, 4 ... 20 mA)
2 = synchro flange, ø 58 mm [2.28“] 4 = parallel / 10 ... 30 V DC see table 1 (for interface 3 and 4, parallel)
7 = 4 ... 20 mA / 5 V DC
b Shaft (ø x L), with flat 8 = 4 ... 20 mA / 10 ... 30 V DC f Options
1 = 6 x 10 mm [0.24 x 0.39“] 2 = SET and V/R
1)
2 = 10 x 20 mm [0.39 x 0.79“] d Type of connection 3 = SET and Latch 1)
1)
1 = axial cable, 1 m [3.28‘] PVC 4 = V/R and Latch
2 = radial cable, 1 m [3.28‘] PVC
3 = axial M23 connector, without mating connector
5 = radial M23 connector, without mating connector
Order code 8.5870 . X X X X . XXX X
Hollow shaft Type a b c d e f

a Flange c Interface / power supply e Code type and division
1 = hollow shaft with spring element, short 3 = parallel / 5 V DC see table 1 (for interface 3 and 4, parallel)
2 = blind hollow shaft with spring element, short 4 = parallel / 10 ... 30 V DC
3 = hollow shaft with stator coupling, ø 65 mm [2.56“] f Options
1)
4 = blind hollow shaft with stator coupling, ø 65 mm [2.56“] d Type of connection 2 = SET and V/R
1 = radial cable, 1 m [3.28‘] PVC 3 = SET and Latch 1)
1)
b Hollow shaft 2 = radial M23 connector, without mating connector 4 = V/R and Latch
6 = ø 10 mm [0.39“]
8 = ø 12 mm [0.47“]

1) For parallel version, 14 bit and 17 pin connector.
