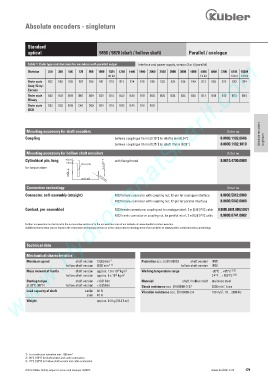

Absolute encoders - singleturn

Standard
optical 5850 / 5870 (shaft / hollow shaft) Parallel / analogue
www.HydroSanatSharif.com
Table 1: Code type and divisions for encoders with parallel output Interface and power supply, version 3 or 4 (parallel)

Division 250 360 500 720 900 1000 1024 1250 1440 1800 2000 2500 2880 3600 4000 4096 5000 7200 8192 16384
10 bit 12 bit 13 bit 14 bit
Order code E02 E03 E05 E07 E09 E01 G10 E12 E14 E18 E20 E25 E28 E36 E40 G12 E50 E72 G13 G14
Gray / Gray-
Excess
Order code B02 B03 B05 B07 B09 B01 B10 BA2 BA1 B18 B20 B25 B28 B36 B40 B12 B50 B72 B13 B14
Binary
Order code D02 D03 D05 D07 D09 D01 D10 DA2 DA1 D18 D20
BCD

Absolute encoders
Mounting accessory for shaft encoders Order no.
Coupling bellows coupling ø 19 mm [0.75“] for shaft 6 mm [0.24“] 8.0000.1102.0606 singleturn
bellows coupling ø 19 mm [0.75“] for shaft 10 mm [0.39“] 8.0000.1102.1010

Mounting accessory for hollow shaft encoders Order no.
Cylindrical pin, long with fixing thread 8.0010.4700.0000

6: > @ P
for torque stops

0 5

Connection technology Order no.
Connector, self-assembly (straight) M23 female connector with coupling nut, 12-pin for analogue interface 8.0000.5012.0000
M23 female connector with coupling nut, 17-pin for parallel interface 8.0000.5042.0000

Cordset, pre-assembled M23 female connector w. coupling nut, for analogue interf., 2 m [6.56‘] PVC cable 8.0000.6901.0002.0031
M23 female connector w. coupling nut, for parallel interf., 2 m [6.56‘] PVC cable 8.0000.6741.0002

Further accessories can be found in the accessories section or in the accessories area of our website at: www.kuebler.com/accessories.
Additional connectors can be found in the connection technology section or in the connection technology area of our website at: www.kuebler.com/connection_technology.

Technical data
Mechanical characteristics
-1
Maximum speed shaft version 12000 min Protection acc. to EN 60529 shaft version IP65
hollow shaft version 6000 min hollow shaft version IP66
-1 1)
-6
Mass moment of inertia shaft version approx. 1.8 x 10 kgm 2 Working temperature range -20°C ... +85°C 2) 3)
-6
hollow shaft version approx. 6 x 10 kgm 2 [-4°F ... +185°F] 2) 3)
Starting torque shaft version < 0.01 Nm Material shaft / hollow shaft stainless steel
at 20°C [68°F] hollow shaft version < 0.05 Nm Shock resistance acc. EN 60068-2-27 2500 m/s , 6 ms
2
Load capacity of shaft radial 80 N Vibration resistance acc. EN 60068-2-6 100 m/s , 10 ... 2000 Hz
2
axial 40 N
Weight approx. 0.4 kg [14.11 oz]

1) For continuous operation max. 1500 min -1 .
2) 80°C [176°F] for shaft version and cable connection.
3) 70°C [158°F] for hollow shaft version and cable connection.
