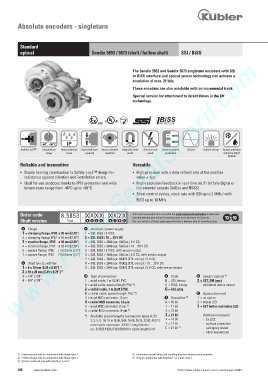

Page 188 - Keubler Motion Sensors

Absolute encoders - singleturn

Standard
optical Sendix 5853 / 5873 (shaft / hollow shaft) SSI / BiSS
www.HydroSanatSharif.com

The Sendix 5853 and Sendix 5873 singleturn encoders with SSI
or BiSS interface and optical sensor technology can achieve a
resolution of max. 21 bits.
These encoders are also available with an incremental track.
Special version for attachment to direct drives in the lift
technology.

RoHS
2/22

-40°... +90°C IP
Safety-Lock TM Temperature High protection High shaft load Shock / vibration Magnetic field Short-circuit Reverse polarity SinCos Optical sensor Surface protection
range level capacity resistant proof proof protection salt spray-tested
optional
Reliable and insensitive Versatile
• Sturdy bearing construction in Safety-Lock™ design for • High-precision with a data refresh rate of the position
resistance against vibration and installation errors. value ) 1µs.
• Ideal for use outdoors thanks to IP67 protection and wide • High-resolution feedback in real-time via 21 bit fully digital or
temperature range from -40°C up to +90°C. incremental outputs SinCos and RS422.
• Short control cycles, clock rate with SSI up to 2 MHz / with
BiSS up to 10 MHz.

Order code 8.5853 . X X X X . X X 2 X If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Shaft version Type a b c d e f g h Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange c Interface / power supply
1 = clamping flange, IP65 ø 58 mm [2.28“] 1 = SSI, BiSS / 5 V DC
3 = clamping flange, IP67 ø 58 mm [2.28“] 2 = SSI, BiSS / 10 ... 30 V DC
2 = synchro flange, IP65 ø 58 mm [2.28“] 3 = SSI, BiSS + 2048 ppr. SinCos / 5 V DC
4 = synchro flange, IP67 ø 58 mm [2.28“] 4 = SSI, BiSS + 2048 ppr. SinCos / 10 ... 30 V DC
5 = square flange, IP65 63.5 mm [2.5“] 5 = SSI, BiSS / 5 V DC, with sensor output
7 = square flange, IP67 63.5 mm [2.5“] 6 = SSI, BiSS + 2048 ppr. SinCos / 5 V DC, with sensor output
7 = SSI, BiSS + 2048 ppr. RS422 (TTL-comp.) / 5 V DC
b Shaft (ø x L), with flat 8 = SSI, BiSS + 2048 ppr. RS422 (TTL-comp.) / 10 ... 30 V DC
1 = 6 x 10 mm [0.24 x 0.39“] 1) 9 = SSI, BiSS + 2048 ppr. RS422 (TTL-comp.) / 5 V DC, with sensor output
2 = 10 x 20 mm [0.39 x 0.79“] 2)
3 = 1/4“ x 7/8“ d Type of connection e Code g Inputs / outputs 4)

4 = 3/8“ x 7/8“ 1 = axial cable, 1 m [3.28‘] PVC B = SSI, binary 2 = SET, DIR input
A = axial cable, special length PVC *) C = BiSS, binary additional status output
2 = radial cable, 1 m [3.28‘] PVC G = SSI, gray
B = radial cable, special length PVC *) h Options (service)
3 = axial M23 connector, 12-pin f Resolution 4) 1 = no option
4 = radial M23 connector, 12-pin A = 10 bit 2 = status LED
5 = axial M12 connector, 8-pin 3) 1 = 11 bit 3 = SET button and status LED
6 = radial M12 connector, 8-pin 3) 2 = 12 bit
*) Available special lengths (connection types A, B): 3 = 13 bit Optional on request
2, 3, 5, 8, 10, 15 m [5.56, 9.84, 16.40, 26.25, 32.80, 49.21‘] 4 = 14 bit - Ex 2/22
order code expansion .XXXX = length in dm 7 = 17 bit 5) - surface protection
ex.: 8.5853.112A.G323.0030 (for cable length 3 m) C = 21 bit salt spray tested
- other resolutions

1) Preferred type only in conjunction with flange type 2. 4) Resolution, preset value and counting direction factory-programmable.
2) Preferred type only in conjunction with flange type 1. 5) Only in conjunction with interface 1 or 2 and code C.
3) Can be combined only with interface 1 and 2.
