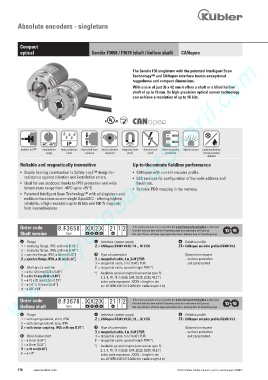

Page 176 - Keubler Motion Sensors

Absolute encoders - singleturn

Compact
optical Sendix F3658 / F3678 (shaft / hollow shaft) CANopen
www.HydroSanatSharif.com

The Sendix F36 singleturn with the patented Intelligent Scan
Technology™ and CANopen interface boasts exceptional
ruggedness and compact dimensions.
With a size of just 36 x 42 mm it offers a shaft or a blind hollow
shaft of up to 10 mm. Its high-precision optical sensor technology
can achieve a resolution of up to 16 bits.

RoHS

-40°... +85°C IP
Safety-Lock TM Temperature High protection High shaft load Shock / vibration Magnetic field Short-circuit Reverse polarity Optical sensor Surface protection
range level capacity resistant proof proof protection salt spray-tested
optional
Reliable and magnetically insensitive Up-to-the-minute fieldbus performance
• Sturdy bearing construction in Safety-Lock™ design for • CANopen with current encoder profile.
resistance against vibration and installation errors. • LSS services for configuration of the node address and
• Ideal for use outdoors thanks to IP67 protection and wide baud rate.
temperature range from -40°C up to +85°C. • Variable PDO mapping in the memory.
• Patented Intelligent Scan Technology™ with all singleturn and
multiturn functions on one single OptoASIC - offering highest
reliability, a high resolution up to 16 bits and 100 % magnetic
field insensitiveness.

Order code 8.F3658 . X X 2 X . 21 1 2 If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Shaft version Type a b c d e Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange c Interface / power supply e Fieldbus profile
1 = clamping flange, IP67, ø 36 mm [1.42“] 2 = CANopen DS301 V4.02 / 10 ... 30 V DC 21 = CANopen encoder profile DS406 V3.2
3 = clamping flange, IP65, ø 36 mm [1.42“]
2 = synchro flange, IP67, ø 36 mm [1.42“] d Type of connection Optional on request
4 = synchro flange, IP65, ø 36 mm [1.42“] 1 = tangential cable, 1 m [3.28‘] PUR - surface protection
3 = tangential cable, 5 m [16.40‘] PUR salt spray tested
b Shaft (ø x L), with flat F = tangential cable, special length PUR *)
1 = ø 6 x 12.5 mm [0.24 x 0.49“] *) Available special lengths (connection type F):
3 = ø 8 x 15 mm [0.32 x 0.49“] 2, 3, 8, 10, 15 m [6.56, 9.84, 26.25, 32.80, 49.21‘]
5 = ø 10 x 20 mm [0.39 x 0.79“] order code expansion .XXXX = length in dm
2 = ø 1/4” x 12.5 mm [0.49“] ex.: 8.F3658.432F.2112.0030 (for cable length 3 m)
4 = ø 3/8” x 5/8“

Order code 8.F3678 . X X 2 X . 21 1 2 If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Hollow shaft Type a b c d e Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange c Interface / power supply e Fieldbus profile
1 = with spring element, short, IP65 2 = CANopen DS301 V4.02 / 10 ... 30 V DC 21 = CANopen encoder profile DS406 V3.2
3 = with spring element, long, IP65
2 = with stator coupling, IP65, ø 46 mm [1.81“] d Type of connection Optional on request
1 = tangential cable, 1 m [3.28‘] PUR - surface protection
b Blind hollow shaft 3 = tangential cable, 5 m [16.40‘] PUR salt spray tested
5 = ø 6 mm [0.24“] F = tangential cable, special length PUR *)
7 = ø 8 mm [0.32“] *) Available special lengths (connection type F):
4 = ø 10 mm [0.39“] 2, 3, 8, 10, 15 m [6.56, 9.84, 26.25, 32.80, 49.21‘]
6 = ø 1/4“ order code expansion .XXXX = length in dm
ex.: 8.F3658.432F.2112.0030 (for cable length 3 m)
