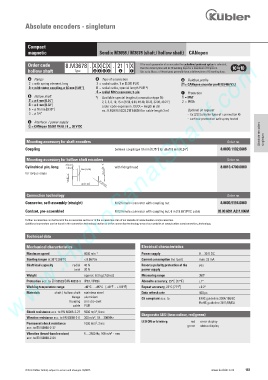

Absolute encoders - singleturn

Compact
magnetic Sendix M3658 / M3678 (shaft / hollow shaft) CANopen
www.HydroSanatSharif.com
Order code 8.M3678 . X X C X . 21 1 X If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
hollow shaft Type a b c d e f Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange d Type of connection e Fieldbus profile
2 = with spring element, long 2 = radial cable, 1 m [3.28] PUR 21 = CANopen encoder profil DS406 V3.2
5 = with stator coupling, ø 46 mm [1.81“] B = radial cable, special length PUR *)
4 = radial M12 connector, 5-pin f Protection
b Hollow shaft
*) Available special lengths (connection type B): 1 = IP67
2 = ø 6 mm [0.24“] 2, 3, 5, 8, 10, 15 m [6.56, 9.84, 16.40, 26.25, 32.80, 49.21‘] 2 = IP69k
4 = ø 8 mm [0.32“] order code expansion .XXXX = length in dm
6 = ø 10 mm [0.39“] ex.: 8.M3678.52CB.2111.0030 (for cable length 3 m) Optional on request
3 = ø 1/4“ - Ex 2/22 (only for type of connection 4)
- surface protection salt spray tested
c Interface / power supply
Absolute encoders
C = CANopen DS301 V4.02 / 8 ... 30 V DC

Mounting accessory for shaft encoders Order no. singleturn
Coupling bellows coupling ø 19 mm [0.75“] for shaft 6 mm [0.24“] 8.0000.1102.0606

Mounting accessory for hollow shaft encoders Order no.

Cylindrical pin, long with fixing thread 8.0010.4700.0000
6: > @ P
for torque stops

0 5

Connection technology Order no.
Connector, self-assembly (straight) M12 female connector with coupling nut 8.0000.5116.0000
Cordset, pre-assembled M12 female connector with coupling nut, 6 m [19.69‘] PVC cable 05.00.6091.A211.006M
Further accessories can be found in the accessories section or in the accessories area of our website at: www.kuebler.com/accessories.
Additional connectors can be found in the connection technology section or in the connection technology area of our website at: www.kuebler.com/connection_technology.

Technical data

Mechanical characteristics Electrical characteristics
Maximum speed 6000 min -1 Power supply 8 ... 30 V DC
Starting torque at 20°C [68°F] < 0.06 Nm Current consumption (no load) max. 25 mA
Shaft load capacity radial 40 N Reverse polarity protection of the yes
axial 20 N power supply
Weight approx. 0.2 kg [7.06 oz] Measuring range 360°
Protection acc. to EN 60529/DIN 40050-9 IP67 / IP69k Absoulte accuracy, 25°C [77°F] ±1°
Working temperature range -40°C ... +85°C [-40°F ... +185°F] Repeat accuracy, 25°C [77°F] ±0.2°
Materials shaft / hollow shaft stainless steel Data refresh rate 400 µs
flange aluminium CE compliant acc. to EMC guideline 2004/108/EC
housing zinc die-cast RoHS guideline 2011/65/EU
cable PUR
2
Shock resistance acc. to EN 60068-2-27 5000 m/s , 6 ms
Diagnostic LED (two-colour, red/green)
Vibration resistance acc. to EN 60068-2-6 300 m/s , 10 ... 2000 Hz
2
2
Permanent shock resistance 1000 m/s , 2 ms LED ON or blinking red error display
acc. to EN 60068-2-27 green status display
2
Vibration (broad-band random) 5 ... 2500 Hz, 100 m/s - rms
acc. to EN 60068-2-64
