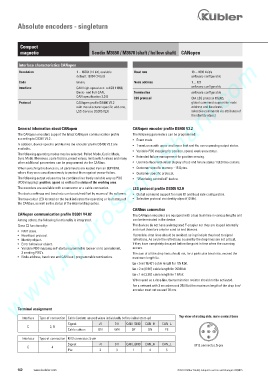

Absolute encoders - singleturn




          Compact
          magnetic                        Sendix M3658 / M3678 (shaft / hollow shaft)  CANopen
           Interface  www.HydroSanatSharif.com
         Interface characteristics CANopen
         Resolution                1 ... 16384 (14 bit), scalable  Baud rate          10 ... 1000 kbit/s
                                   default: 16384 (14 bit)                            software configurable
         Code                      binary                    Node address             1 ... 127
                                                                                      software configurable
         Interface                 CAN high-speed acc. to ISO 11898,
                                   Basic- and Full-CAN,      Termination              software configurable
                                   CAN specification 2.0 B
                                                             LSS protocol             CIA LSS protocol DS305,
         Protocol                  CANopen profile DS406 V3.2                          global command support for node
                                   with manufacturer-specific add-ons,                 address and baud rate,
                                   LSS-Service DS305 V2.0                             selective commands via attributes of
                                                                                      the identity object


         General information about CANopen                  CANopen encoder profile DS406 V3.2
         The CANopen encoders support the latest  CANopen communication profile   The following parameters can be programmed:
         according to DS301 V4.2 .                          •   Event mode.
         In addition, device specific profiles like the encoder profile DS406 V3.2 are   •   1 work area with upper and lower limit and the corresponding output states.
         available.
                                                            •   Variable PDO mapping for position, speed, work area status.
         The following operating modes may be selected: Polled Mode, Cyclic Mode,
         Sync Mode. Moreover, scale factors, preset values, limit switch values and many   •   Extended failure management for position sensing.
         other additional parameters can be programmed via the CANbus.   •   User interface with visual display of bus and failure status 1 LED two colours.
         When switching the device on, all parameters are loaded from an EEPROM,   •   Customer-specific memory - 16 Bytes.
         where they were saved previously to protect them against power-failure.  •   Customer-specific protocol.
         The following output values may be combined in a freely variable way as PDO   •  “Watchdog controlled” device.
         (PDO mapping): position, speed as well as the status of the working area.
         The encoders are available with a connector or a cable connection.   LSS protocol profile DS305 V2.0
         The device address and baud rate can be set/modified by means of the software.   •   Global command support for node ID and baud rate configuration.
         The two colour LED located on the back indicates the operating or fault status of   •   Selective protocol via identity object (1018h).
         the CANbus, as well as the status of the internal diagnostics.
                                                            CANbus connection
         CANopen communication profile DS301 V4.02           The CANopen encoders are equipped with a bus trunk line in various lengths and
         Among others, the following functionality is integrated.   can be terminated in the device.
         Class C2 functionality:                            The devices do not have an integrated T-coupler nor they are looped internally
                                                            and must therefore only be used as end devices.
         •   NMT slave.
         •   Heartbeat protocol.                            If possible, drop lines should be avoided, as in principle they lead to signal
         •   Identity object.                               reflections. As a rule the reflections caused by the drop lines are not critical,
         •   Error behaviour object.                        if they have completely decayed before the point in time when the scanning
         •   Variable PDO mapping self-start programmable (power on to operational),    occurs.
           3 sending PDO’s.                                 The sum of all the drop lines should not, for a particular baud rate, exceed the
         •   Node address, baud rate and CAN bus / programmable termination.  maximum length Lu.
                                                            Lu < 5 m [16.40‘] cable length for 125 Kbit.
                                                            Lu < 2 m [6.56‘] cable length for 250 Kbit.
                                                            Lu < 1 m [3.28‘] cable length for 1 Mbit.
                                                            When used as a drop line, the termination resistor should not be activated.
                                                            For a network with 3 encoders and 250 Kbit the maximum length of the drop line/
                                                            encoder must not exceed 70 cm.



         Terminal assignment

                   Type of connection  Cable (isolate unused wires individually before initial start-up)  Top view of mating side, male contact base
                               Signal:       +V     0 V  CAN_GND  CAN_H  CAN_L
             C         2, B                                                                  2
                               Cable colour:   BN   WH     GY      GN     YE
                                                                                           3  5  1
           Interface   Type of connection  M12 connector, 5-pin                              4
                               Signal:       +V     0 V  CAN_GND  CAN_H  CAN_L         M12 connector, 5-pin
             C          4
                               Pin:          2       3      1      4       5
