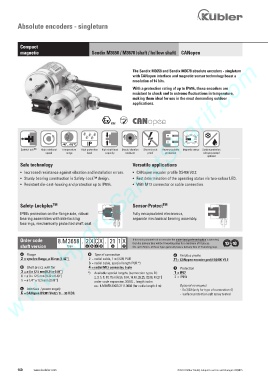

Page 162 - Keubler Motion Sensors

Absolute encoders - singleturn

Compact
magnetic Sendix M3658 / M3678 (shaft / hollow shaft) CANopen
www.HydroSanatSharif.com

The Sendix M3658 and Sendix M3678 absolute encoders - singleturn
with CANopen interface and magnetic sensor technology boast a
resolution of 14 bits.
With a protection rating of up to IP69k, these encoders are
resistant to shock and to extreme fluctuations in temperature,
making them ideal for use in the most demanding outdoor
applications.

RoHS
2/22

-40°... +85°C IP
Safety-Lock TM High rotational Temperature High protection High shaft load Shock / vibration Short-circuit Reverse polarity Magnetic sensor Surface protection
speed range level capacity resistant proof protection salt spray-tested
optional
Safe technology Versatile applications
• Increased resistance against vibration and installation errors. • CANopen encoder profile DS406 V3.2.
• Sturdy bearing construction in Safety-Lock™ design. • Fast determination of the operating status via two-colour LED.
• Resistant die-cast-housing and protection up to IP69k. • With M12 connector or cable connection.

Safety-Lockplus TM Sensor-Protect TM
IP69k protection on the flange side, robust Fully encapsulated electronics,
bearing assemblies with interlocking separate mechanical bearing assembly.
bearings, mechanically protected shaft seal.

Order code 8.M3658 . 2 X C X . 21 1 X If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
shaft version Type a b c d e f Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange d Type of connection e Fieldbus profile
2 = synchro flange, ø 36 mm [1.42“] 2 = radial cable, 1 m [3.28] PUR 21 = CANopen encoder profil DS406 V3.2
B = radial cable, special length PUR *)
b Shaft (ø x L), with flat 4 = radial M12 connector, 5-pin f Protection
3 = ø 6 x 12.5 mm [0.24 x 0.49“] *) Available special lengths (connection types B): 1 = IP67
6 = ø 8 x 12.5 mm [0.32 x 0.49“] 2, 3, 5, 8, 10, 15 m [6.56, 9.84, 16.40, 26.25, 32.80, 49.21‘] 2 = IP69k
5 = ø 1/4“ x 12.5 mm [0.49“] order code expansion .XXXX = length in dm
ex.: 8.M3658.23CB.2111.0030 (for cable length 3 m) Optional on request
c Interface / power supply - Ex 2/22 (only for type of connection 4)
C = CANopen DS301 V4.02 / 8 ... 30 V DC - surface protection salt spray tested

160 www.kuebler.com © Fritz Kübler GmbH, subject to errors and changes. 02/2015
