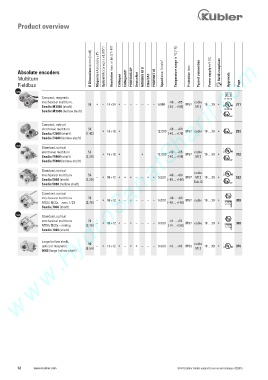

Product overview

Ø Dimensions in mm [inch] Magnetic (Accuracy ±1°) Optical (Accuracy ≤ ±0.015°) Resolution max. in bit ST+MT Temperature range in °C [°F] RoHS compliant
www.HydroSanatSharif.com

Absolute encoders Speed max. in min -1 Type of connection Power supply in V DC
Multiturn CANopen CANopenlift PROFIBUS DP DeviceNet MODBUS RTU EtherCAT PROFINET IO Protection max. Approvals
Fieldbus RoHS Page

Compact, magnetic pending
mechanical multiturn, 36 • – 14 + • – – – – – – 6.000 -40 ... +85 IP67 cable 10 ... 30 • 271
Sendix M3668 (shaft) [-40... +185] M12
pending
Sendix M3688 (hollow shaft)
2/22
Compact, optical
electronic multiturn 36 -40 ... +80
– • 16 +16 • – – – – – – 12.000 IP67 cable 10 ... 30 • 282
Sendix F3668 (shaft) [1.42] [-40... +176] 2/22
Sendix F3688 (hollow shaft)
Standard, optical
electronic multiturn 58 -40 ... +85 cable
– • 16 +16 • – – – • – – 12.000 IP67 10 ... 30 • 312
Sendix F5868 (shaft) [2.28] [-40... +185] M12
Sendix F5888 (hollow shaft) 2/22
Standard, optical
cable
mechanical multiturn 58 -40 ... +60
– • 16 +12 • • • – – • • 9.000 IP67 M12 10 ... 30 • 322
Sendix 5868 (shaft) [2.28] [-40 ... +140]
Sub-D
Sendix 5888 (hollow shaft) 2/22
Standard, optical
mechanical multiturn 70 – • 16 +12 • – • – – – – 6.000 -40 ... +60 IP67 cable 10 ... 30 • 359
ATEX / IECEx – zone 1 / 21 [2.76] [-40 ... +140]
Sendix 7068 (shaft)

Standard, optical
mechanical multiturn 70 – • 16 +12 • – • – – – – 6.000 -10 ... +70 IP67 cable 10 ... 30 • 368
ATEX / IECEx – mining [2.76] [-14 ... +158]
Sendix 7168 (shaft)

Large hollow shaft, 90 cable
optical / magnetic [3.54] – • 13 +12 • – • • – – – 6.000 -10 ... +70 IP65 M12 10 ... 30 • 374
9080 (large hollow shaft)
