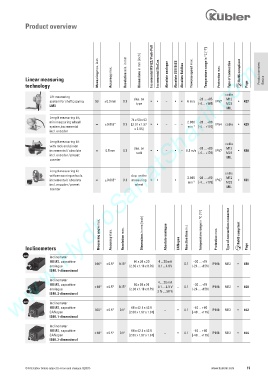

Product overview

www.HydroSanatSharif.com
Measuring max. in m Resolution min. in mm Dimensions in mm [inch] Incremental RS422 / Push-Pull Incremental SinCos Absolute analogue Absolute SSI / BiSS Absolute fieldbus Traverse speed max. Temperature range in °C [°F] Type of connection RoHS compliant Product overview

Linear measuring Accuracy max. Protection max. Basics
technology RoHS Page

cable
Lift measuring dep. on -20 ... +85 M12
system for shaftcopying 53 ± 0.5 mm 0.1 type • • – • • 6 m/s [-4 ... +185] IP67 M23 • 427
LM3
MIL
Length measuring kit, 74 x 50 x 52
mini measuring wheel ∞ ± 0.015° 0.1 [2.91 x 1.97 • • – – – 2.000 -20 ... +80 IP64 cable • 429
system, incremental x 2.05] min -1 [-4 ... +176]
incl. encoder

Length measuring kit cable
with rack and pinion dep. on -20 ... +80 M12
incremental / absolute ∞ 0.5 mm 0.1 rack • • – • – 0.5 m/s [-4 ... +176] IP67 M23 • 430
incl. encoder / preset MIL
counter

Length measuring kit
cable
with measuring wheels dep. on the
2.000 -20 ... +80 M12
incremental / absolute ∞ ± 0.015° 0.1 measuring • • – • – IP67 • 431
min -1 [-4 ... +176] M23
incl. encoder / preset wheel
MIL
counter

Measuring angle max. Accuracy max. Resolution max. Dimensions in mm [inch] Absolute analogue Reaction time in s Temperature range in °C [°F] Protection max. Type of connection connector RoHS compliant

Inclinometers CANopen RoHS Page

Inclinometer
MEMS, capacitive 3 60° ± 0.5° 0.15° 60 x 30 x 20 4 ... 20 mA – 0.1 -30 ... +70 IP69k M12 • 438
analogue [2.36 x 1.18 x 0.79] 0.1 ... 4.9 V [-24 ... +158]
IS40, 1-dimensional

Inclinometer 4 ... 20 mA
MEMS, capacitive ± 60° ± 0.5° 0.15° 60 x 30 x 20 0.1 ... 4.9 V – 0.1 -30 ... +70 IP69k M12 • 440
analogue [2.36 x 1.18 x 0.79] 2 % ... 98 % [-24 ... +158]
IS40, 2-dimensional

Inclinometer
MEMS, capacitive 360° ± 0.5° 0.1° 68 x 42.5 x 42.5 – • 0.1 -40 ... +80 IP69k M12 • 442
CANopen [2.68 x 1.67 x 1.67] [-40 ... +176]
IS60, 1-dimensional

Inclinometer
MEMS, capacitive ± 60° ± 0.5° 0.1° 68 x 42.5 x 42.5 – • 0.1 -40 ... +80 IP69k M12 • 444
CANopen [2.68 x 1.67 x 1.67] [-40 ... +176]
IS60, 2-dimensional

© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 15
