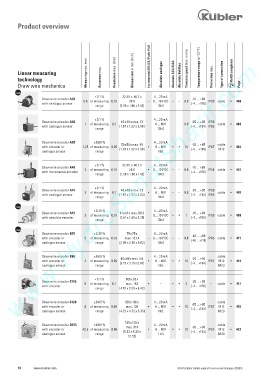

Product overview

www.HydroSanatSharif.com
Measuring max. in m Absolute analogue Absolute SSI / BiSS Absolute fieldbus Type of connection

Linear measuring Resolution max. [mm] Dimensions in mm [inch] Incremental RS422 / Push-Pull Traverse speed max. in m/s Temperature range in °C [°F] RoHS compliant
technology Accuracy max. Protection max.
Draw wire mechanics RoHS Page

± 0.1 % 32.45 x 40.7 x 4 ... 20 mA
Draw wire encoder A30 0.6 of measuring 0.15 28.6 – 0 ... 10 V DC – – 0.8 -10 ... +80 IP50 cable • 400
with analogue sensor [-4 ... +176]
range [1.28 x 1.60 x 1.13] 10kΩ

± 0.1 % 4 ... 20 mA
Draw wire encoder A40 40 x 40 x max. 72 -20 ... +90 IP50
1 of measuring 0.1 – 0 ... 10 V – – 0.8 cable • 402
with analogue sensor [1.57 x 1.57 x 3.90] [-4 ... +194] IP65
range 10kΩ
Draw wire encoder A50 ± 0.05 % 50 x 50 x max. 99 4 ... 20 mA -20 ... +85 cable
with encoder or 1.25 of measuring 0.05 [1.97 x 1.97 x 3.90] • 0 ... 10 V • • 10 [-4 ... +185] IP67 M12 • 404
analogue sensor range 1kΩ

± 0.1 % 32.45 x 40.7 x 4 ... 20 mA
Draw wire encoder A40 -10 ... +80
2 of measuring 0.15 28.6 • 0 ... 10 V DC – – 0.8 IP45 cable • 407
with incremental encoder [-4 ... +176]
range [1.28 x 1.60 x 1.13] 10kΩ

± 0.1 % 4 ... 20 mA
Draw wire encoder A41 2 of measuring 0.1 40 x 40 x max. 72 • 0 ... 10 V – – 0.8 -20 ... +90 IP50 cable • 402
with analogue sensor [1.57 x 1.57 x 2.83] [-4 ... +194] IP65
range 10kΩ

± 0.35 % 4 ... 20 mA
Draw wire encoder A41 41 x 41 x max. 96.3 -10 ... +80
2 of measuring 0.15 – 0 ... 10 V DC • • 1 IP50 cable • 409
with absolute encoder [1.61 x 1.61 x 3.79] [-4 ... +176]
range 10kΩ
Draw wire encoder B75 ± 0.35 % 75 x 75 x 4 ... 20 mA -40 ... +80
with encoder or 3 of measuring 0.15 max. 127.4 – 0 ... 10 V DC – – 0.8 [-40 ... +176] IP65 cable • 411
analogue sensor range [2.95 x 2.95 x 5.02] 10kΩ

Draw wire encoder B80 ± 0.05 % 80 x 80 x max.144 4 ... 20 mA -20 ... +90 cable
with encoder or 3 of measuring 0.05 [3.15 x 3.15 x 5.67] • 0 ... 10 V • • 10 [-4 ... +194] IP67 M12 • 414
analogue sensor range 1kΩ M23

± 0.1 % 105 x 85 x
Draw wire encoder C105 6 of measuring 0.1 max. 163 • – • • 3 -20 ... +80 – cable • 417
with encoder [-4 ... +176]
range [4.13 x 3.35 x 6.42]

Draw wire encoder C120 ± 0.05 % 120 x 120 x 4 ... 20 mA -20 ... +90 cable
with encoder or 6 of measuring 0.08 max. 136 • 0 ... 10 V • • 10 [-4 ... +194] IP67 M12 • 419
analogue sensor range [4.72 x 4.72 x 5.35] 1kΩ M23

135 x 135 x
Draw wire encoder D135 ± 0.05 % 4 ... 20 mA cable
max. 318 -20 ... +90
with encoder or 42.5 of measuring 0.08 • 0 ... 10 V • • 10 IP67 M12 • 422
[5.32 x 5.32 x [-4 ... +194]
analogue sensor range 1 kΩ M23
12.52]
