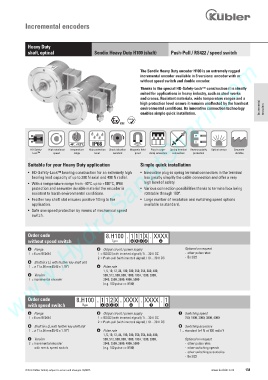

Incremental encoders

Heavy Duty
shaft, optical Sendix Heavy Duty H100 (shaft) Push-Pull / RS422 / speed switch
www.HydroSanatSharif.com

The Sendix Heavy Duty encoder H100 is an extremely rugged
incremental encoder available in 3 versions: encoder with or
without speed switch and double encoder.
Thanks to the special HD-Safety-Lock™ construction it is ideally
suited for applications in heavy industry, such as steel works
and cranes. Resistant materials, wide temperature ranges and a
high protection level ensure it remains unaffected by the harshest
environmental conditions. Its innovative connection technology Incremental encoders
enables simple quick installation.
RoHS
2/22

-40°... +100°C IP66
HD-Safety- High rotational Temperature High protection Shock / vibration Magnetic field Plug-in cage- Spring terminal Reverse polarity Optical sensor Seawater
Lock TM speed range level resistant proof clamp connectors connectors protection durable

Suitable for your Heavy Duty application Simple quick installation
• HD-Safety-Lock™ bearing construction for an extremely high • Innovative plug-in spring terminal connectors in the terminal
bearing load capacity of up to 300 N axial and 400 N radial. box greatly simplify the cable connection and offer a very
• With a temperature range from -40°C up to +100°C, IP66 high level of safety.
protection and seawater durable material the encoder is • Various connection possibilities thanks to terminal box being
resistant to harsh environmental conditions. rotatable through 180°.
• Feather key shaft slot ensures positive fitting to the • Large number of resolution and switching speed options
application. available as standard.
• Safe overspeed protection by means of mechanical speed
switch.

Order code 8.H100 . 1 1 1 X . XXXX
without speed switch Type a b c d e

a Flange d Output circuit / power supply Optional on request
1 = Euro RE0444 1 = RS422 (with inverted signal) / 5 ... 30 V DC - other pulse rates
2 = Push-pull (with inverted signal) / 10 ... 30 V DC - Ex 2/22
b Shaft (ø x L), with feather key shaft slot
1 = ø 11 x 30 mm [0.43 x 1.18“] e Pulse rate
1, 5, 10, 12, 36, 100, 200, 250, 256, 360, 400,
c Version 500, 512, 600, 800, 1000, 1024, 1200, 2000,
1 = incremental encoder 2048, 2500, 3600, 4096, 5000
(e.g. 100 pulse => 0100)

Order code 8.H100 . 1 1 2 X . XXXX . XXXX . 1
with speed switch Type a b c d e f g
a Flange d Output circuit / power supply f Switching speed
1 = Euro RE0444 1 = RS422 (with inverted signal) / 5 ... 30 V DC 750, 1000, 2000, 3000, 4000
2 = Push-pull (with inverted signal) / 10 ... 30 V DC
b Shaft (ø x L), with feather key shaft slot g Switching accuracy

1 = ø 11 x 30 mm [0.43 x 1.18“] e Pulse rate 1 = standard (±4 % at 100 rad/s )
2
1, 5, 10, 12, 36, 100, 200, 250, 256, 360, 400,
c Version 500, 512, 600, 800, 1000, 1024, 1200, 2000, Optional on request
2 = incremental encoder 2048, 2500, 3600, 4096, 5000 - other pulse rates
with mech. speed switch (e.g. 100 pulse => 0100) - other switching speeds
- other switching accuracies
- Ex 2/22

© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 133
