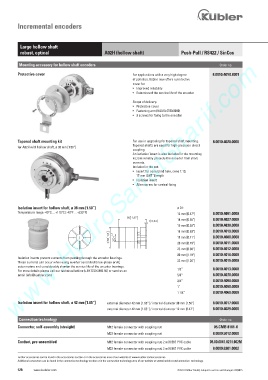

Page 130 - Keubler Motion Sensors

Incremental encoders

Large hollow shaft
robust, optical A02H (hollow shaft) Push-Pull / RS422 / SinCos
www.HydroSanatSharif.com
Mounting accessory for hollow shaft encoders Order no.
Protective cover For applications with a very high degree 8.0010.40Y0.0001
of pollution, Kübler now offers a protective
cover for
• Improved reliability
• Extension of the service life of the encoder

Scope of delivery:
• Protective cover
• Fastening arm (8.0010.4T00.0000)
• 3 screws for fixing to the encoder

Tapered shaft mounting kit For use in upgrading for tapered shaft mounting. 8.0010.4028.0000
Tapered shafts are used for high-precision direct
for A02H with hollow shaft, ø 38 mm [1.50“]
coupling.
An isolation insert is also included in the mounting
kit; this reliably protects the encoder from shaft
currents.
Included in the set:
• Insert for cone blind hole, cone 1:10,
17 mm [0.67“] length
• Isolation insert
• Allen screw for central fixing

Isolation insert for hollow shaft, ø 38 mm [1.50“] ø D1:
Temperature range -40°C ... +115°C [-40°F ... +239°F] 12 mm [0.47“] 8.0010.4091.0000

14 mm [0.55“] 8.0010.4027.0000
15 mm [0.59“] 8.0010.4038.0000
16 mm [0.63“] 8.0010.4019.0000
+ 18 mm [0.71“] 8.0010.4080.0000
'
20 mm [0.79“] 8.0010.4011.0000
25 mm [0.98“] 8.0010.4012.0000
30 mm [1.18“] 8.0010.4016.0000
Isolation inserts prevent currents from passing through the encoder bearings.
These currents can occur when using inverter controlled three-phase or AC 32 mm [1.26“] 8.0010.4015.0000
ector motors and considerably shorten the service life of the encoder bearings.
For more details please call our technical hotline (+49 7720 3903 92) or send us an 1/2” 8.0010.4013.0000
email (info@kuebler.com) 5/8“ 8.0010.4070.0000
3/4” 8.0010.4090.0000
1“ 8.0010.4050.0000
1 1/4” 8.0010.4060.0000

Isolation insert for hollow shaft, ø 42 mm [1.65“] external diameter 42 mm [1.65“] / internal diameter 38 mm [1.50“] 8.0010.4017.0000
external diameter 42 mm [1.65“] / internal diameter 12 mm [0.47“] 8.0010.4029.0000

Connection technology Order no.
Connector, self-assembly (straight) M12 female connector with coupling nut 05.CMB 8181-0
M23 female connector with coupling nut 8.0000.5012.0000
Cordset, pre-assembled M12 female connector with coupling nut, 2 m [6.56‘] PVC cable 05.00.6041.8211.002M
M23 female connector with coupling nut, 2 m [6.56‘] PVC cable 8.0000.6201.0002
Further accessories can be found in the accessories section or in the accessories area of our website at: www.kuebler.com/accessories.
Additional connectors can be found in the connection technology section or in the connection technology area of our website at: www.kuebler.com/connection_technology.
