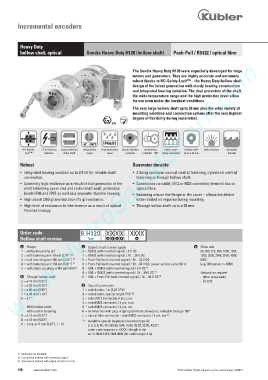

Incremental encoders

Heavy Duty
hollow shaft, optical Sendix Heavy Duty H120 (hollow shaft) Push-Pull / RS422 / optical fibre
www.HydroSanatSharif.com

The Sendix Heavy Duty H120 were especially developed for large
motors and generators. They are highly accurate and extremely
robust thanks to HD-Safety-Lock™ – the Heavy Duty hollow shaft
design of the latest generation with sturdy bearing construction
and integrated bearing isolation. The dual protection of the shaft,
the wide temperature range and the high protection level allow
for use even under the harshest conditions.

The very large hollow shaft up to 28 mm plus the wide variety of
mounting solutions and connection options offer the very highest
degree of flexibility during installation.
RoHS
2/22

-40°... +100°C IP66/67
HD-Safety- 2.5 kV bearing Dual protection Temperature High protection Shock / vibration Terminal box Plug-in cage- Hollow shaft Optical sensor Seawater
Lock TM isolation of the shaft range level resistant rotatable - 180° clamp connectors up to ø 28 mm durable

Robust Seawater durable
• Integrated bearing isolation up to 2.5 kV for reliable shaft • 3 fixing solutions: conical central fastening, cylindrical central
connection. fastening or through hollow shaft.
• Extremely high resilience as a result of dual protection of the • Connection via cable, M12 or M23 connector, terminal box or
shaft (shielding cover disk and radial shaft seal), protection optical fibre.
levels IP66 and IP67 as well as a seawater durable housing. • Fastening arm on the flange or the cover – allows the device
• High shock (200 g) and vibration (15 g) resistance. to be rotated as required during mounting.
• High level of resistance to interference as a result of optical • Through hollow shaft up to ø 28 mm.
fibre technology.

Order code 8.H120 . X X X X . XXXX
Hollow shaft version Type a b c d e
a Flange c Output circuit / power supply e Pulse rate
1 = without mounting aid 4 = RS422 (with inverted signal) / 5 V DC 50, 360, 512, 600, 1000, 1024,
2 = with fastening arm 70 mm [2.76“] 1) 1 = RS422 (with inverted signal) / 10 ... 30 V DC 1500, 2000, 2048, 2500, 4096,
3 = with fastening arm 100 mm [3.93“] 1) 5 = Push-Pull (with inverted signal) / 10 ... 30 V DC 5000
1)
4 = with fastening arm 150 mm [5.91“] 6 = Push-Pull (with inverted signal) / 10 ... 30 V DC, power version up to 350 m (e.g. 360 pulses => 0360)
5 = with stator coupling, ø 119 mm [4.69“] B = LWL + RS422 (with inverted signal) / 5 V DC 2)
A = LWL + RS422 (with inverted signal) / 10 ... 30 V DC 2) Optional on request
b Through hollow shaft C = LWL + Push-Pull (with inverted signal) / 10 ... 30 V DC 2) - other pulse rates
2 = ø 16 mm [0.63“] - Ex 2/22
3 = ø 20 mm [0.79“] d Type of connection
5 = ø 25 mm [0.98“] 1 = radial cable, 1 m [3.28‘] PVC
7 = ø 28 mm [1.10“] A = radial cable, special length PVC *)
6 = ø 1“ 2 = radial M12 connector, 8-pin, ccw
4 = radial M23 connector, 12-pin, ccw
Blind hollow shaft, D = radial M23 connector, 12-pin, cw
with central fastening K = terminal box with plug-in spring terminal connectors, rotatable through 180°
A = ø 12 mm [0.47“] L = optical fibre connector + radial M23 connector, 12-pin, cw 3)
B = ø 16 mm [0.63“] *) Available special lengths (connection type A):
K = cone, ø 17 mm [0.67“], 1 : 10 2, 3, 5, 8, 10, 15 m [6.56, 9.84, 16.40, 26.25, 32.80, 49.21‘]
order code expansion .XXXX = length in dm
ex.: 8.H120.121A.2048.0030 (for cable length 3 m)

1) Enclosed, not mounted.
2) Can only be ordered with connection type L.
3) Can only be ordered with output circuits A, B or C.
